93690 Series

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Number of Rows	Insulation Height	Insulation Height	Insulation Material	Number of Positions Loaded	Termination	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Style	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Mounting Type	Number of Positions	Connector Type	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Voltage Rating	Contact Finish - Post	Fastening Type	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Length - Mating	Number of Positions	Overall Contact Length [x]	Overall Contact Length [x]

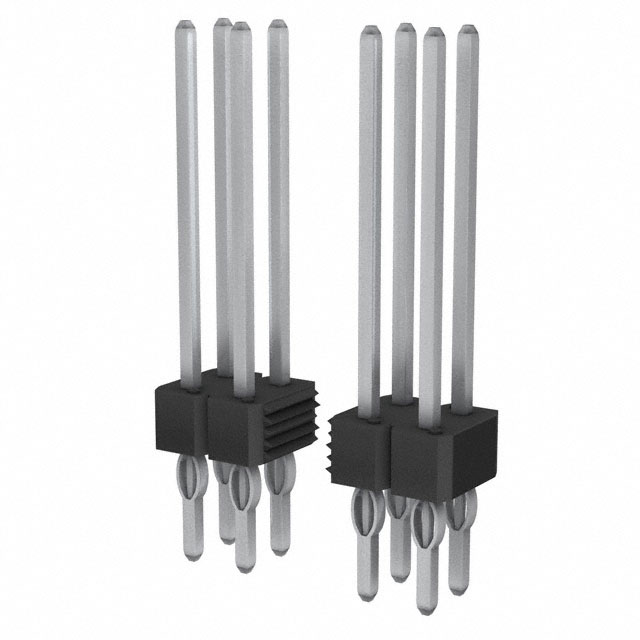

Amphenol ICC (FCI) 93690-404-10LF	2	0.1 in	2.54 mm	Thermoplastic	All	Press-Fit Solder	0.1 in	2.54 mm	5 A	Board to Board Cable	Male Pin	120 µin	3.05 Ám	Black	Copper Alloy	0.187 in	4.75 mm	UL94 V-0	Through Hole	10	Breakaway Header	Square	120 Áin	3.05 Ám	Unshrouded	110 VDC	Tin	Push-Pull	0.583 in	14.81 mm	2.54 mm	0.1 in	22.15 mm	0.872 in

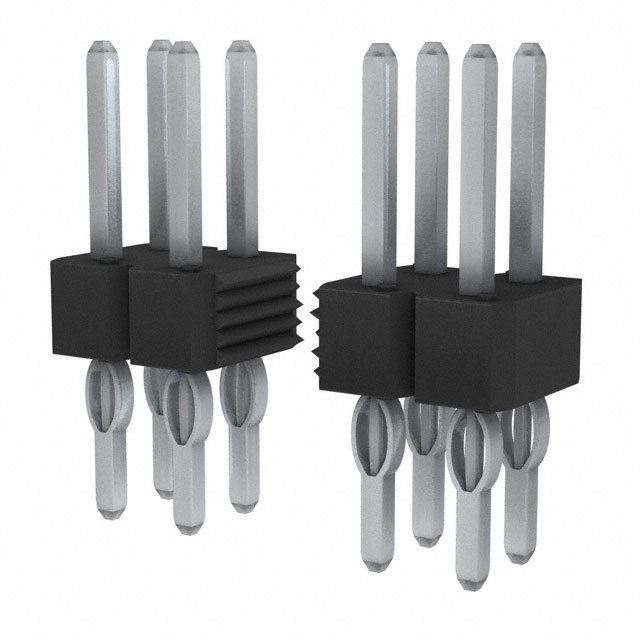

Amphenol ICC (FCI) 93690-403-24LF	2	0.1 in	2.54 mm	Thermoplastic	All	Press-Fit Solder	0.1 in	2.54 mm	5 A	Board to Board Cable	Male Pin	120 µin	3.05 Ám	Black	Copper Alloy			UL94 V-0	Through Hole	24	Breakaway Header	Square	120 Áin	3.05 Ám	Unshrouded	110 VDC	Tin	Push-Pull			2.54 mm	0.1 in	12.83 mm	0.505 in	0.224 in	5.7 mm	0.177 in	4.5 mm

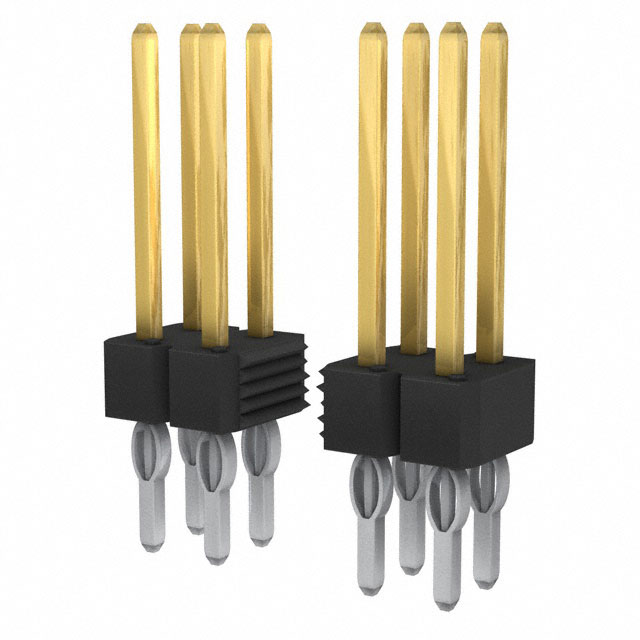

Amphenol ICC (FCI) 93690-102-20LF	2	0.1 in	2.54 mm	Thermoplastic	All	Press-Fit Solder	0.1 in	2.54 mm	5 A	Board to Board Cable	Male Pin	30 Áin	0.76 Ám	Black	Copper Alloy			UL94 V-0	Through Hole	20	Breakaway Header	Square	39.4 çin	1 çm	Unshrouded	110 VDC	Tin	Push-Pull	0.399 in	10.13 mm	2.54 mm	0.1 in	17.4 mm	0.685 in			0.177 in	4.5 mm	Gold GXT™
Amphenol ICC (FCI) 93690-105-60LF	2	0.1 in	2.54 mm	Thermoplastic	All	Press-Fit Solder	0.1 in	2.54 mm	5 A	Board to Board Cable	Male Pin	30 Áin	0.76 Ám	Black	Copper Alloy			UL94 V-0	Through Hole	60	Breakaway Header	Square	39.4 çin	1 çm	Unshrouded	110 VDC	Tin	Push-Pull		0.327 in	2.54 mm	0.1 in	15.44 mm	0.608 "			0.177 in	4.5 mm	Gold GXT™	8.3 mm

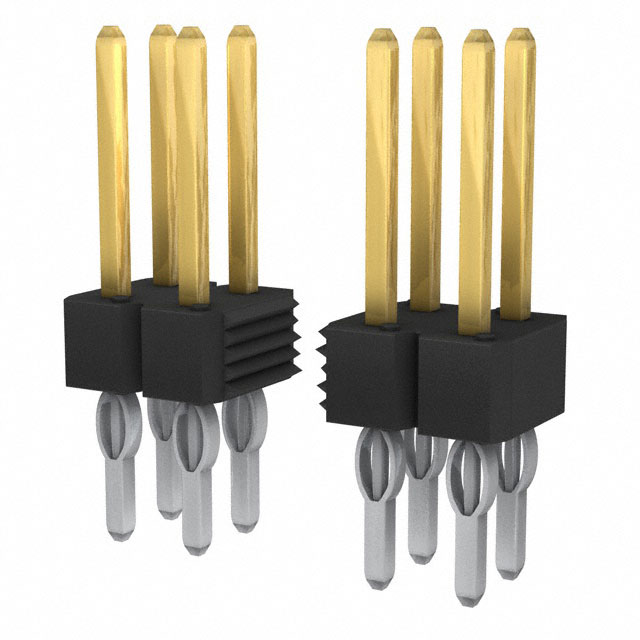

Amphenol ICC (FCI) 93690-101-16LF	2	0.1 in	2.54 mm	Thermoplastic	All	Press-Fit Solder	0.1 in	2.54 mm	5 A	Board to Board Cable	Male Pin	30 Áin	0.76 Ám	Black	Copper Alloy			UL94 V-0	Through Hole		Breakaway Header	Square	39.4 çin	1 çm	Unshrouded	110 VDC	Tin	Push-Pull	0.295 in	7.49 mm	2.54 mm	0.1 in					0.177 in	4.5 mm	Gold GXT™		16	14.78 mm	0.582 in
Amphenol ICC (FCI) 93690-105-30LF	2	0.1 in	2.54 mm	Thermoplastic	All	Press-Fit Solder	0.1 in	2.54 mm	5 A	Board to Board Cable	Male Pin	30 Áin	0.76 Ám	Black	Copper Alloy			UL94 V-0	Through Hole	30	Breakaway Header	Square	39.4 çin	1 çm	Unshrouded	110 VDC	Tin	Push-Pull		0.327 in	2.54 mm	0.1 in	15.44 mm	0.608 "			0.177 in	4.5 mm	Gold GXT™	8.3 mm
Amphenol ICC (FCI) 93690-103-20	2	0.1 in	2.54 mm	Thermoplastic	All	Press-Fit Solder	0.1 in	2.54 mm		Board to Board Cable	Male Pin	30 Áin	0.76 Ám	Black	Copper Alloy			UL94 V-0	Through Hole	20	Breakaway Header	Square			Unshrouded			Push-Pull			2.54 mm	0.1 in	12.83 mm	0.505 in	0.224 in	5.7 mm	0.177 in	4.5 mm	Gold GXT™
Amphenol ICC (FCI) 93690-403-40LF	2	0.1 in	2.54 mm	Thermoplastic	All	Press-Fit Solder	0.1 in	2.54 mm	5 A	Board to Board Cable	Male Pin	120 µin	3.05 Ám	Black	Copper Alloy			UL94 V-0	Through Hole	40	Breakaway Header	Square	39.4 çin	1 çm	Unshrouded	110 VDC	Tin	Push-Pull			2.54 mm	0.1 in	12.83 mm	0.505 in	0.224 in	5.7 mm	0.177 in	4.5 mm
Amphenol ICC (FCI) 93690-105-32	2	0.1 in	2.54 mm	Thermoplastic	All	Press-Fit Solder	0.1 in	2.54 mm		Board to Board Cable	Male Pin	30 Áin	0.76 Ám	Black	Copper Alloy			UL94 V-0	Through Hole		Breakaway Header	Square			Unshrouded			Push-Pull		0.327 in	2.54 mm	0.1 in	15.44 mm	0.608 "			0.177 in	4.5 mm	Gold GXT™	8.3 mm
Amphenol ICC (FCI) 93690-109-40LF	2	0.1 in	2.54 mm	Thermoplastic	All	Press-Fit Solder	0.1 in	2.54 mm	5 A	Board to Board Cable	Male Pin	30 Áin	0.76 Ám	Black	Copper Alloy			UL94 V-0	Through Hole	40	Breakaway Header	Square	39.4 çin	1 çm	Unshrouded	110 VDC	Tin	Push-Pull		0.327 in	2.54 mm	0.1 in	14.4 mm	0.567 "			0.142 in	3.6 mm	Gold GXT™	8.3 mm
