325-090 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 90POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Gender	Color	Read Out	Card Thickness	Card Thickness	Number of Rows [custom]	Pitch	Pitch	Termination	Number of Positions/Bay/Row	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Flange Feature	Mounting Type	Contact Type	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 325-090-540-207	2	Diallyl Phthalate (DAP)	Female	Green	Dual	3.18 mm	0.125 in	2	0.1 "	2.54 mm	Wire Wrap	45	Copper Alloy	0.25 Ám	10 Áin	Gold	-65 ░C	125 °C	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	Through Hole	Cantilever	90
EDAC Inc. 325-090-500-208	2	Diallyl Phthalate (DAP)	Female	Green	Dual	3.18 mm	0.125 in	2	0.1 "	2.54 mm	Solder Eyelet(s)	45	Copper Alloy	0.25 Ám	10 Áin	Gold	-65 ░C	125 °C	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Cantilever	90
EDAC Inc. 325-090-520-209	2	Diallyl Phthalate (DAP)	Female	Green	Dual	3.18 mm	0.125 in	2	0.1 "	2.54 mm	Solder	45	Copper Alloy	0.25 Ám	10 Áin	Gold	-65 ░C	125 °C	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	Through Hole	Cantilever	90	0.16 "	4.06 mm
EDAC Inc. 325-090-540-209	2	Diallyl Phthalate (DAP)	Female	Green	Dual	3.18 mm	0.125 in	2	0.1 "	2.54 mm	Wire Wrap	45	Copper Alloy	0.25 Ám	10 Áin	Gold	-65 ░C	125 °C	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	Through Hole	Cantilever	90	0.16 "	4.06 mm

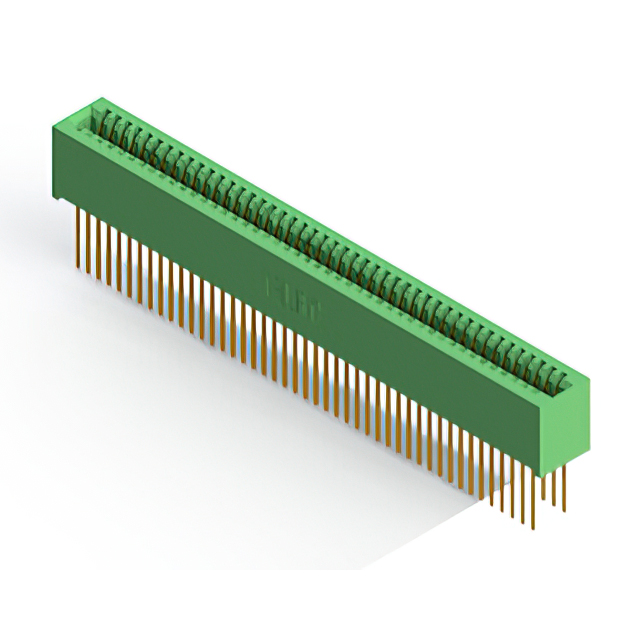

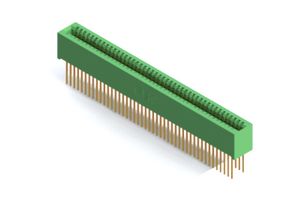

EDAC Inc. 325-090-540-201	2	Diallyl Phthalate (DAP)	Female	Green	Dual	3.18 mm	0.125 in	2	0.1 "	2.54 mm	Wire Wrap	45	Copper Alloy	0.25 Ám	10 Áin	Gold	-65 ░C	125 °C	Non Specified - Dual Edge		Through Hole	Cantilever	90
