MAX4948 Series

Catalog

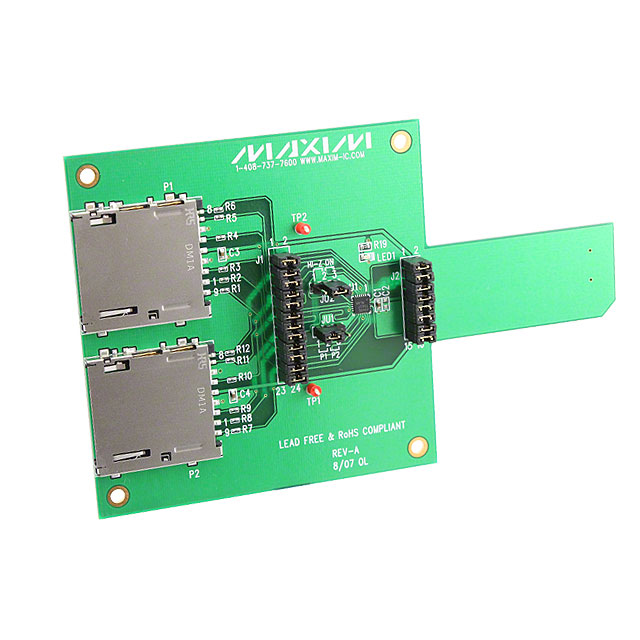

KIT EVAL FOR MAX4948

Part	Function	Supplied Contents	Utilized IC / Part	Type	On-State Resistance (Max) [Max]	Charge Injection	-3db Bandwidth	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Current - Leakage (IS(off)) (Max)	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Switch Circuit	Multiplexer/Demultiplexer Circuit	Mounting Type	Supplier Device Package	Channel-to-Channel Matching (ΔRon)	Package / Case	Number of Circuits	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Crosstalk
Analog Devices Inc./Maxim Integrated MAX4948EVKIT+	Special Purpose	Board(s)	MAX4948	Interface
Analog Devices Inc./Maxim Integrated MAX4948ETG+					5.5 Ohm	10 pC	300 MHz	15 pF	15 pF	3 nA	1.8 V	5.5 V	SPDT	2:1	Surface Mount	24-TQFN (4x4)	300 mOhm	24-WFQFN Exposed Pad	6	800 ns	800 ns	85 °C	-40 °C	-90 dB
Analog Devices Inc./Maxim Integrated MAX4948ETG+T					5.5 Ohm	10 pC	300 MHz	15 pF	15 pF	3 nA	1.8 V	5.5 V	SPDT	2:1	Surface Mount	24-TQFN (4x4)	300 mOhm	24-WFQFN Exposed Pad	6	800 ns	800 ns	85 °C	-40 °C	-90 dB
Analog Devices Inc./Maxim Integrated MAX4948EBA+T					5.5 Ohm	10 pC	300 MHz	15 pF	15 pF	3 nA	1.8 V	5.5 V	SPDT	2:1	Surface Mount	25-UCSP (2.54x2.54)	300 mOhm	25-WFBGA CSPBGA	6	800 ns	800 ns	85 °C	-40 °C	-90 dB
