1500VDC 1A PHOTOVOLTAIC FUSE
Description
AI

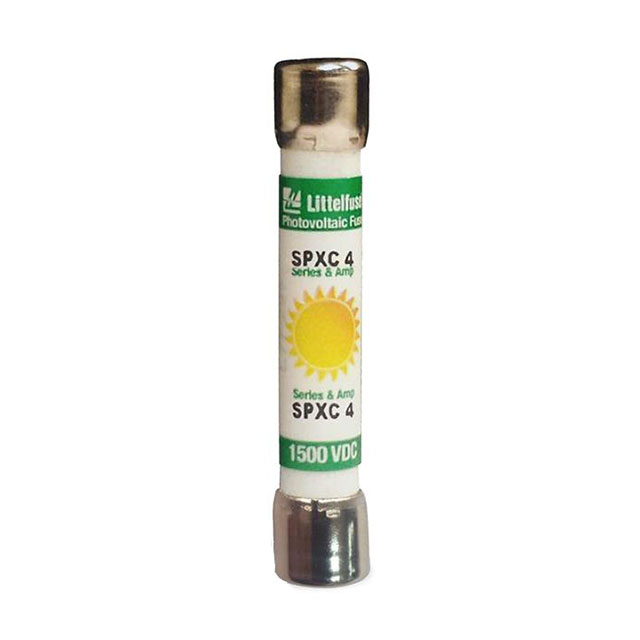

The Littelfuse SPXC solar string fuse is designed specifically for 1-4 A 1500 Vdc applications.
Beta
⌘K
1500VDC 1A PHOTOVOLTAIC FUSE
1500VDC 1A PHOTOVOLTAIC FUSE
| Part | Melting I˛t | DC Cold Resistance | Approval Agency | Response Time | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Voltage Rating - DC | Fuse Type | Package / Case | Breaking Capacity @ Rated Voltage | Mounting Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.29 | 0.6253 Ohms | CE gPV UL | Fast Blow | 10.3 mm | 0.406 in | 2.252 in | 57.2 mm | 1.5 kV | Cartridge | Cartridge Non-Standard | 50 kA | Requires Holder | Solar (Photovoltaic) |
 LITTELFUSE | CE gPV UL | Fast Blow | 10.3 mm | 0.406 in | 2.252 in | 57.2 mm | 1.5 kV | Cartridge | Cartridge Non-Standard | 50 kA | Requires Holder | Solar (Photovoltaic) |
