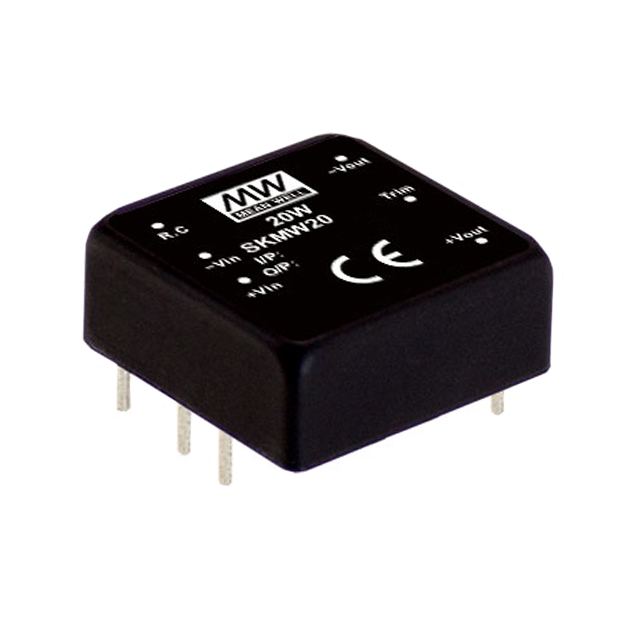

SKMW20 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 3.3V 15W
| Part | Number of Outputs | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Voltage - Isolation | Features | Voltage - Output 1 | Efficiency | Mounting Type | Power (Watts) | Voltage - Input (Min) [Min] | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Package / Case | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 1 | ITE (Commercial) | -40 °C | 85 °C | 4.5 A | 1.5 kV | OCP OVP Remote On/Off SCP UVLO | 3.3 V | 87 % | Through Hole | 15 W | 18 V | Isolated Module | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 6-DIP Module | 75 V |
MEAN WELL USA Inc. | 1 | ITE (Commercial) | -40 °C | 85 °C | 4.5 A | 1.5 kV | OCP OVP Remote On/Off SCP UVLO | 3.3 V | 87 % | Through Hole | 15 W | 9 V | Isolated Module | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 6-DIP Module | 36 V |
