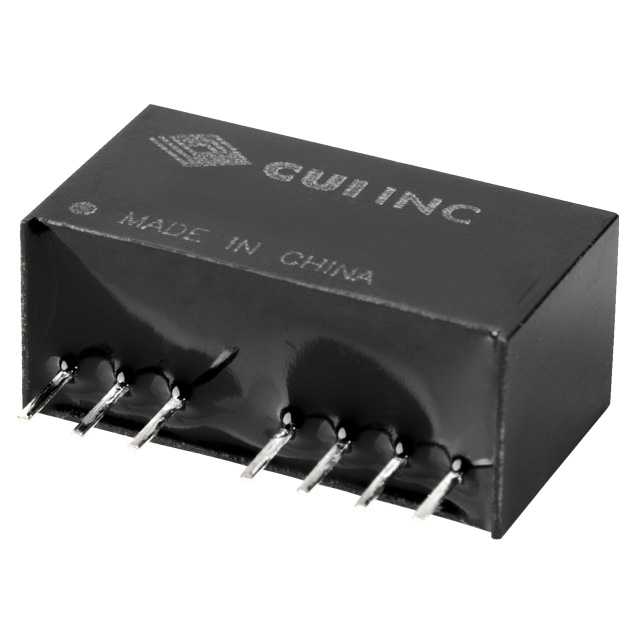

PRMC3 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 5V 3W

Part	Efficiency	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Type	Standard Number	Approval Agency	Voltage - Output 1	Power (Watts)	Voltage - Isolation	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Number of Outputs	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
CUI Inc. PRMC3-D48-S5-S	76 %	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	36 V	75 V	Isolated Module	55024 55032	EN	5 V	3 W	3000 V	Through Hole	-40 C	105 ░C	ITE (Commercial)	1	600 mA
CUI Inc. PRMC3-D24-D15-S	83 %	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	18 V	36 V	Isolated Module	55024 55032	EN	15 V	3 W	3000 V	Through Hole	-40 C	105 ░C	ITE (Commercial)	2		-15 V	100 mA	100 mA
CUI Inc. PRMC3-D5-S9-S	74 %	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	4.5 V	9 V	Isolated Module	55024 55032	EN	9 V		3000 V	Through Hole	-40 C	105 ░C	ITE (Commercial)	1	278 mA
CUI Inc. PRMC3-D5-D5-S	74 %	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	4.5 V	9 V	Isolated Module	55024 55032	EN	5 V		3000 V	Through Hole	-40 C	105 ░C	ITE (Commercial)	2		-5 V			250 mA
CUI Inc. PRMC3-D12-D5-S	78 %	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	9 V	18 V	Isolated Module	55024 55032	EN	5 V	3 W	3000 V	Through Hole	-40 C	105 ░C	ITE (Commercial)	2	0.3 A	-5 V
CUI Inc. PRMC3-D12-S5-S	76 %	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	9 V	18 V	Isolated Module	55024 55032	EN	5 V	3 W	3000 V	Through Hole	-40 C	105 ░C	ITE (Commercial)	1	600 mA
CUI Inc. PRMC3-D24-S12-S	83 %	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	18 V	36 V	Isolated Module	55024 55032	EN	12 V	3 W	3000 V	Through Hole	-40 C	105 ░C	ITE (Commercial)	1	250 mA
CUI Inc. PRMC3-D48-S12-S	80 %	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	36 V	75 V	Isolated Module	55024 55032	EN	12 V	3 W	3000 V	Through Hole	-40 C	105 ░C	ITE (Commercial)	1	250 mA
CUI Inc. PRMC3-D48-D5-S	79 %	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	36 V	75 V	Isolated Module	55024 55032	EN	5 V	3 W	3000 V	Through Hole	-40 C	105 ░C	ITE (Commercial)	2	0.3 A	-5 V
CUI Inc. PRMC3-D12-S3-S	74 %	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	9 V	18 V	Isolated Module	55024 55032	EN	3.3 V		3000 V	Through Hole	-40 C	105 ░C	ITE (Commercial)	1	758 mA
