S300 Series

Catalog

DIODE GP REV 200V 300A DO205AB

Part	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Package / Case	Technology	Mounting Type	Speed [Min]
GeneSiC Semiconductor S300DR	10 µA	200 C	-60 °C	DO-205AB	DO-9	1.2 V	200 V	300 A	DO-205AB DO-9 Stud	Reverse Polarity Standard	Chassis Stud Mount	200 mA 500 ns
GeneSiC Semiconductor S300Z	10 µA	180 °C	-60 °C	DO-205AB	DO-9	1.2 V	2000 V	300 A	DO-205AB DO-9 Stud	Standard	Chassis Stud Mount	200 mA 500 ns
GeneSiC Semiconductor S300B	10 µA	200 C	-60 °C	DO-205AB	DO-9	1.2 V	100 V	300 A	DO-205AB DO-9 Stud	Standard	Chassis Stud Mount	200 mA 500 ns
GeneSiC Semiconductor S300E	10 µA	200 C	-60 °C	DO-205AB	DO-9	1.2 V	300 V	300 A	DO-205AB DO-9 Stud	Standard	Chassis Stud Mount	200 mA 500 ns
GeneSiC Semiconductor S300D	10 µA	200 C	-60 °C	DO-205AB	DO-9	1.2 V	200 V	300 A	DO-205AB DO-9 Stud	Standard	Chassis Stud Mount	200 mA 500 ns
GeneSiC Semiconductor S300G	10 µA	200 C	-60 °C	DO-205AB	DO-9	1.2 V	400 V	300 A	DO-205AB DO-9 Stud	Standard	Chassis Stud Mount	200 mA 500 ns

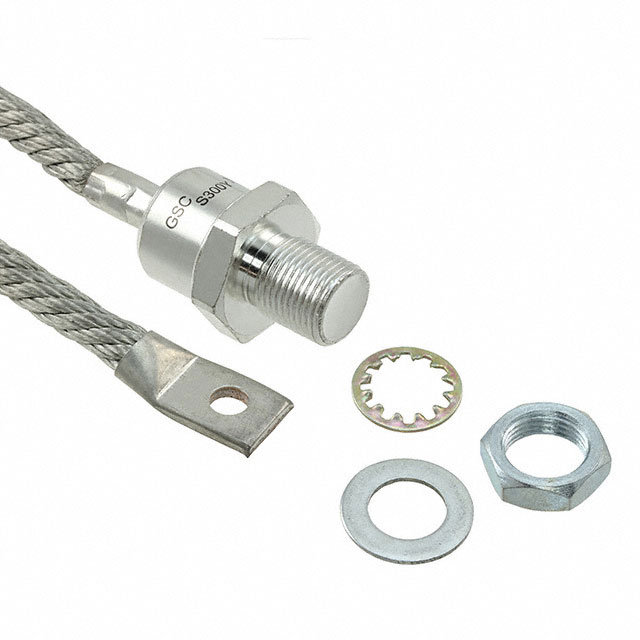

GeneSiC Semiconductor S300Y	10 µA	180 °C	-60 °C	DO-9		1.2 V		300 A	DO-205AB DO-9 Stud	Standard	Chassis Stud Mount	200 mA 500 ns
GeneSiC Semiconductor S300J	10 µA	200 C	-60 °C	DO-205AB	DO-9	1.2 V	600 V	300 A	DO-205AB DO-9 Stud	Standard	Chassis Stud Mount	200 mA 500 ns
GeneSiC Semiconductor S300JR	10 µA	200 C	-60 °C	DO-205AB	DO-9	1.2 V	600 V	300 A	DO-205AB DO-9 Stud	Reverse Polarity Standard	Chassis Stud Mount	200 mA 500 ns
GeneSiC Semiconductor S300ER	10 µA	200 C	-60 °C	DO-205AB	DO-9	1.2 V	300 V	300 A	DO-205AB DO-9 Stud	Reverse Polarity Standard	Chassis Stud Mount	200 mA 500 ns
