MC34063A Series

Buck / Boost / Inverting Regulator, Switching, 1.5 A

Catalog

Buck / Boost / Inverting Regulator, Switching, 1.5 A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Function	Frequency - Switching	Topology	Current - Output	Mounting Type	Voltage - Input (Min) [Min]	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]	Output Type	Number of Outputs	Output Configuration	Main Purpose	Board Type	Contents	Voltage - Input	Regulator Topology	Utilized IC / Part	Outputs and Type	Outputs and Type	Voltage - Output	Supplied Contents	Frequency - Switching [Min]	Frequency - Switching [Max]	Package / Case	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]
ON Semiconductor MC34063SMDBEVB
ON Semiconductor MC34063ADG	70 °C	0 °C	Step-Down Step-Up	100 kHz	Boost Buck	1.5 A	Surface Mount	3 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	1.25 V	40 V	Adjustable	1	Positive or Negative

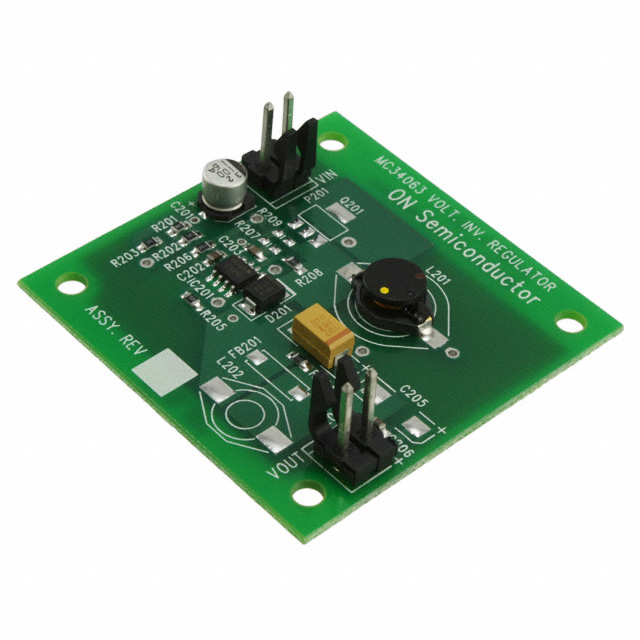

ON Semiconductor MC34063SMDINVEVB				100 kHz		50 mA												DC/DC Negative Inverter	Fully Populated	Board(s)	5 VDC	Inverting	MC34063	1 Non-Isolated Output Non-Isolated	1	-12 V	Board(s)
ON Semiconductor MC34063AMG	70 °C	0 °C	Step-Down Step-Up	100 kHz	Boost Buck	1.5 A	Surface Mount	3 V	8-MFP	8-SOIC	5.3 mm	0.209 "	1.25 V	40 V	Adjustable	1	Positive or Negative
ON Semiconductor MC34063AP	70 °C	0 °C	Step-Down Step-Up		Boost Buck	1.5 A	Through Hole	3 V	8-DIP	8-DIP			1.24 V	40 V	Adjustable	1	Positive or Negative											100 Hz	100 kHz	0.3 in	7.62 mm

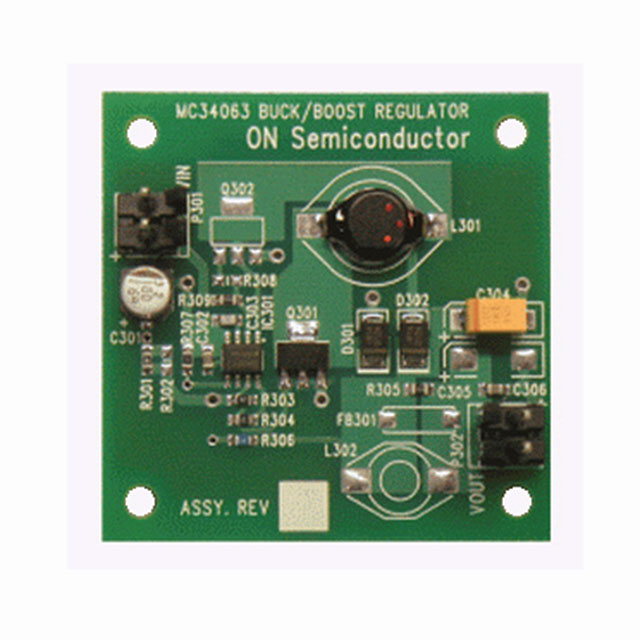

ON Semiconductor MC34063SMDBBGEVB																		DC/DC Step Up or Down	Fully Populated			Buck-Boost	MC34063	Non-Isolated	1	3.3 V	Board(s)					3 V	6 V
ON Semiconductor MC34063LINVEVB				100 kHz		50 mA												DC/DC Negative Inverter	Fully Populated		5 VDC	Inverting	MC34063	Non-Isolated	1	-12 V	Board(s)
ON Semiconductor MC34063ADR2	70 °C	0 °C	Step-Down Step-Up	100 kHz	Boost Buck	1.5 A	Surface Mount	3 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	1.25 V	40 V	Adjustable	1	Positive or Negative
ON Semiconductor MC34063AD	70 °C	0 °C	Step-Down Step-Up	100 kHz	Boost Buck	1.5 A	Surface Mount	3 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	1.25 V	40 V	Adjustable	1	Positive or Negative
ON Semiconductor MC34063ADX	70 °C	0 °C	Step-Down Step-Up		Boost Buck	1.5 A	Surface Mount	3 V	8-SOIC	8-SOIC	3.9 mm	0.154 in	1.24 V	40 V	Adjustable	1	Positive or Negative											100 Hz	100 kHz

Catalog

Buck / Boost / Inverting Regulator, Switching, 1.5 A

Key Features

• Operation from 3.0 V to 40 V Input

• Low Standby Current

• Current Limiting

• Output Switch Current to 1.5 A

• Output Voltage Adjustable

• Frequency Operation to 100 kHz

• Precision 2% Reference

• MC34063A = 0 to +70℃

• MC33063A = -40 to +85℃

• MC33063AV / NCV33063A = -40 to +125℃

• 4x4mm DFN package option

Description

The MC34063A Series is a monolithic control circuit containing the primary functions required for dc-to-dc converters. These Buck Boost Inverting Switching Regulators consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step down (Buck), Step up (Boost) and Voltage-Inverting applications with a minimum number of external components. Refer to Application Notes AN920A/D and AN954/D for additional design information. The MC33063 is an extended temperature version. The NCV33063 is an extended temp version for automotive.
