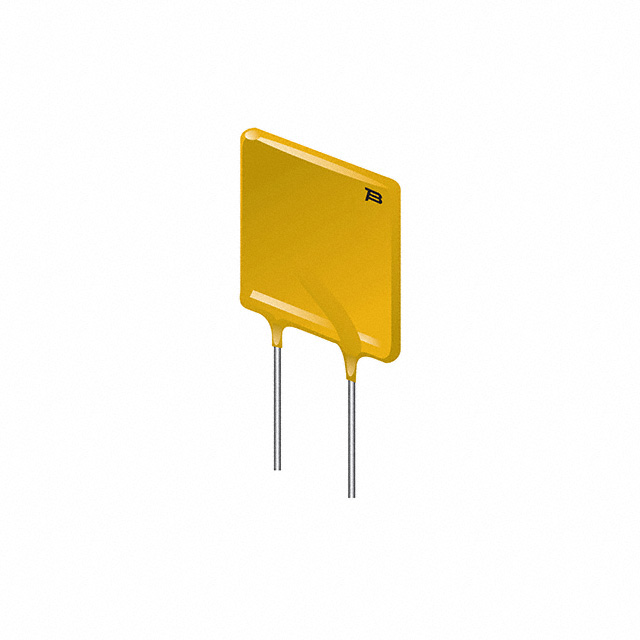

MF-RHT Series

Catalog

FUSE, RESETTABLE PTC, AEC-Q200, 16V, THD

Part	Current - Trip (It)	Time to Trip	Mounting Type	Grade	Voltage - Max [Max]	Resistance - Initial (Ri) (Min) [Min]	Lead Spacing	Lead Spacing	Qualification	Package / Case	Current - Max [Max]	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistance - Post Trip (R1) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Current - Hold (Ih) (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension	Size / Dimension [diameter]	Size / Dimension [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)

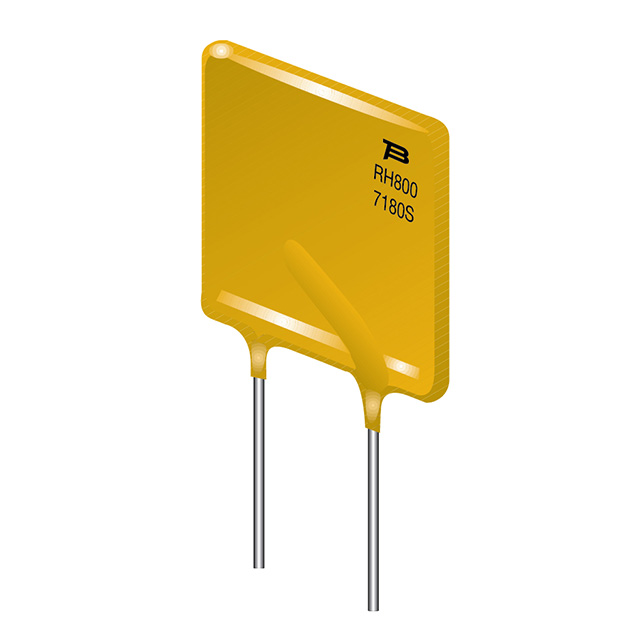

Bourns Inc. MF-RHT800-2	15 A	8 s	Through Hole	Automotive	16 V	8 mOhms	0.201 in	5.1 mm	AEC-Q200	Disc Radial	100 A	Polymeric	0.886 in	22.5 mm	0.118 in	0.63 in	3 mm	16 mm	20 mOhms	8 A	125 °C	-40 C
Bourns Inc. MF-RHT800-AP-14	15 A	8 s	Through Hole	Automotive	16 V	8 mOhms	0.201 in	5.1 mm	AEC-Q200	Disc Radial	100 A	Polymeric	0.886 in	22.5 mm	3 mm	16.5 mm			20 mOhms	8 A	125 °C	-40 C	cUL cURus TUV	0.118 in	0.65 in
Bourns Inc. MF-RHT100-2	1.8 A	5.2 s	Through Hole	Automotive	30 V	180 mOhms	0.201 in	5.1 mm	AEC-Q200	Disc Radial	40 A	Polymeric			3 mm	9.7 mm			430 mOhms	1 A	125 °C	-40 C		0.118 in	0.382 "
Bourns Inc. MF-RHT800-0	15 A	8 s	Through Hole	Automotive	16 V	8 mOhms	0.201 in	5.1 mm	AEC-Q200	Disc Radial	100 A	Polymeric	0.886 in	22.5 mm	0.118 in	0.63 in	3 mm	16 mm	20 mOhms	8 A	125 °C	-40 C
Bourns Inc. MF-RHT1000-2	18.5 A		Through Hole	Automotive	16 V	6.2 mOhms			AEC-Q200	Disc Radial	100 A	Polymeric			3 mm	17.5 mm			15 mOhms		125 °C	-40 C		0.118 in	0.689 in	10 A	26.7 mm	1.051 in
Bourns Inc. MF-RHT200/32-0	3.8 A	3 s	Through Hole	Automotive	32 V	45 mOhms	0.201 in	5.1 mm	AEC-Q200	Disc Radial	50 A	Polymeric	0.551 in	14 mm					110 mOhms	2 A	125 °C	-40 C							3 mm 9.4 mm	0.37 "	0.118 "
Bourns Inc. MF-RHT650-2	12 A	5.5 s	Through Hole	Automotive	16 V	11 mOhms	0.114 "	2.9 mm	AEC-Q200	Disc Radial	100 A	Polymeric	0.874 in	22.2 mm	3 mm	12.7 mm			26 mOhms	6.5 A	125 °C	-40 C		0.118 in	0.5 "
Bourns Inc. MF-RHT500-2	9 A		Through Hole	Automotive	16 V	17.5 mOhms	0.201 in	5.1 mm	AEC-Q200	Disc Radial	100 A	Polymeric			3 mm	11.2 mm			45 mOhms	5 A	125 °C	-40 C		0.118 in	0.441 in			18.9 mm				0.744 "
Bourns Inc. MF-RHT450-AP	7.8 A	3 s	Through Hole	Automotive	16 V	22 mOhms	0.114 "	2.9 mm	AEC-Q200	Disc Radial	100 A	Polymeric	0.614 in		3 mm	10.4 mm			54 mOhms		125 °C	-40 C		0.118 in	0.409 in	4.5 A							15.6 mm
Bourns Inc. MF-RHT1100-0	20 A	11 s	Through Hole	Automotive	16 V	5.5 mOhms			AEC-Q200	Disc Radial	100 A	Polymeric			3 mm	21 mm			13 mOhms	11 A	125 °C	-40 C		0.118 in	0.827 "			26.1 mm				1.028 in
