09370061 Series
Manufacturer: HARTING
Beta
⌘K

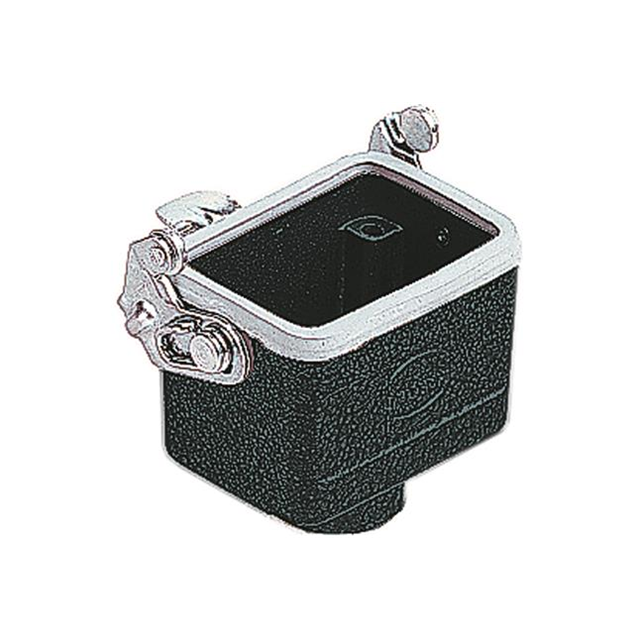

HAN M HOOD COUPLER LC 1 LEVER PG 13.5 ROHS COMPLIANT: NA
| Part | Style | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Thread Size | Housing Color | Size | Lock Location | Features | Ingress Protection | Housing Finish | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Bottom Entry Top or Bottom Entry | Aluminum Die Cast | 125 °C | -40 C | 1.677 " | 60 mm | 42.6 mm | 43 mm | 2.362 in | 1.693 " | PG13.5 | Black | 6B | Locking Clip (1) on Hood Top | Cable to Cable | IP65 - Dust Tight Water Resistant | Powder Coated | Hood - Coupling |

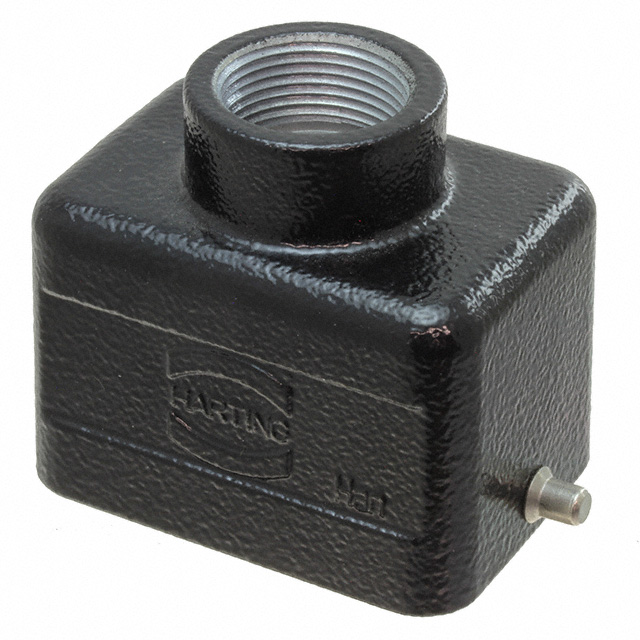

 HARTING | Top Entry | Aluminum Die Cast | 125 °C | -40 C | 1.575 in | 60 mm | 40 mm | 43 mm | 2.362 in | 1.693 " | PG16 | Black | 6B | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | Powder Coated | Hood |
