BD9870FPS Series

8-35V 1.5A 1ch Buck converter

Catalog

8-35V 1.5A 1ch Buck converter

Part	Number of Outputs	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Synchronous Rectifier	Function	Output Configuration	Mounting Type	Voltage - Input (Min) [Min]	Frequency - Switching	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max] [custom]	Voltage - Output (Max) [Max]	Output Type	Current - Output	Topology

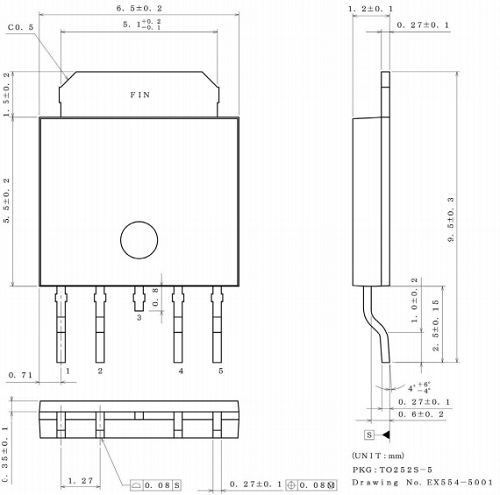

Rohm Semiconductor BD9870FPS-E2	1	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	85 °C	-40 °C		Step-Down	Positive	Surface Mount	8 V	900 kHz	1 V	35 V	35 V	Adjustable	1.5 A	Buck

Catalog

8-35V 1.5A 1ch Buck converter

Description

The BD9870FPS single-channel step-down switching regulator incorporates a Pch MOSFET capable of PWM operation at 900kHz, enabling use of a smaller coil, as well as circuitry that eliminates the need for external compensation - only a diode, coil, and ceramic capacitor are required - reducing board size significantly.
