9684 Series
Manufacturer: Belden Inc.
Beta
⌘K

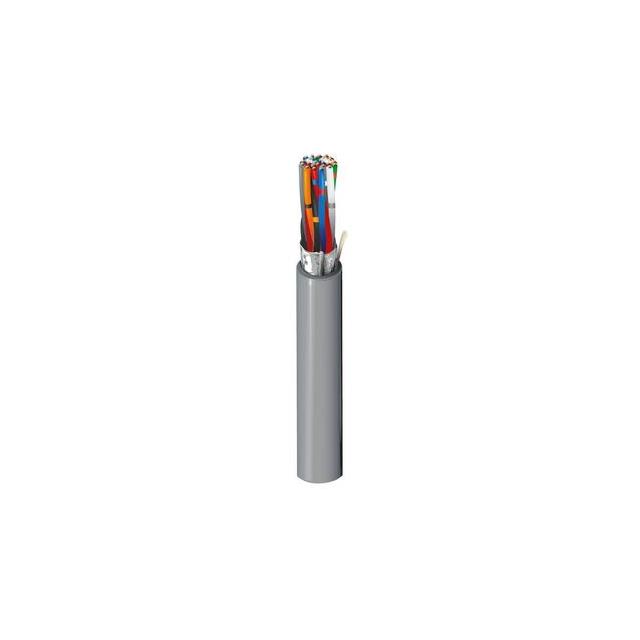

CABLE 25COND 24AWG CHRM SHD
| Part | Shield Coverage | Shield Material | Number of Conductors [custom] | Usage | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Shield Type | Conductor Material | Conductor Insulation | Cable Type | Jacket Color | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 25 | Computer | 152.4 m | 500 ft | 7 | 32 AWG | UL Style 2919 | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | 24 AWG | Foil | Copper Tinned | Polyethylene (PE) | Multi-Conductor | Chrome | Drain Wire | 0.445 in | 11.3 mm | 80 °C | -20 ░C |
