LBEE5 Series
Manufacturer: Murata Power Solutions Inc.
Beta
⌘K
RF TXRX MOD BLUETOOTH WIFISMD
| Part | Power - Output | Current - Receiving [Max] | Current - Receiving [Min] | RF Family/Standard | Modulation | Utilized IC / Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Data Rate | Serial Interfaces | Antenna Type | Current - Transmitting [Max] | Current - Transmitting [Min] | Protocol | Operating Temperature [Min] | Operating Temperature [Max] | Frequency | Package / Case | Current - Receiving | Current - Transmitting | Sensitivity | Voltage - Supply | For Use With/Related Products | Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. | 19 dBm | 90 mA | 22 mA | Bluetooth WiFi | 8-DPSK CCK DQPSK DSSS OFDM | QCA9377-3 | 1.71 V | 3.46 V | Surface Mount | 54 Mbps | PCM SDIO UART | Antenna Not Included | 420 mA | 50 mA | 802.11a/b/g/-c Bluetooth v5.0 | -20 C | 70 °C | 2.4 GHz 5 GHz | 62-SMD Module | |||||||
 Murata Power Solutions Inc. | 17 dBm | Bluetooth WiFi | CCK DSSS OFDM | BCM4343W | 3.3 V | 4.2 V | Surface Mount | 65 Mbps | UART | Antenna Not Included | 802.11b/g/n Bluetooth v5.1 | -30 ░C | 70 °C | 2.4 GHz | 46-SMD Module | 60 mA | 370 mA | |||||||||
 Murata Power Solutions Inc. | 17 dBm | Bluetooth WiFi | Surface Mount | 11 Mbps | UART | Integrated Trace | 802.11a/b/g/n/ac Bluetooth v4.0 | -20 C | 80 C | 2.4 GHz | Module | 160 mA | 350 mA | -76 dBm | 3.6 V | |||||||||||

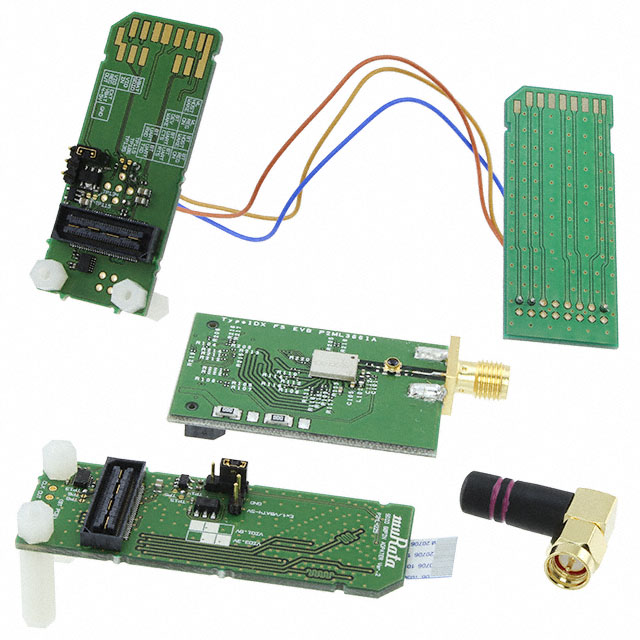

 Murata Power Solutions Inc. | 2.4 GHz | BCM4343W i.MX 6 | 802.11 b/g/n (Wi-Fi WiFi WLAN) Bluetooth® Smart Ready 4.x Dual Mode (BLE) Transceiver | Board(s) | ||||||||||||||||||||||
 Murata Power Solutions Inc. | Bluetooth WiFi | CCK DSSS OFDM | CYW43438 | Surface Mount | 96 Mbps | ADC GPIO I2C PWM SPI UART | Antenna Not Included | 802.11b/g/n Bluetooth v4.2 | -40 °C | 85 °C | 2.4 GHz | Module | ||||||||||||||
Murata Power Solutions Inc. |
