TK20P04 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K

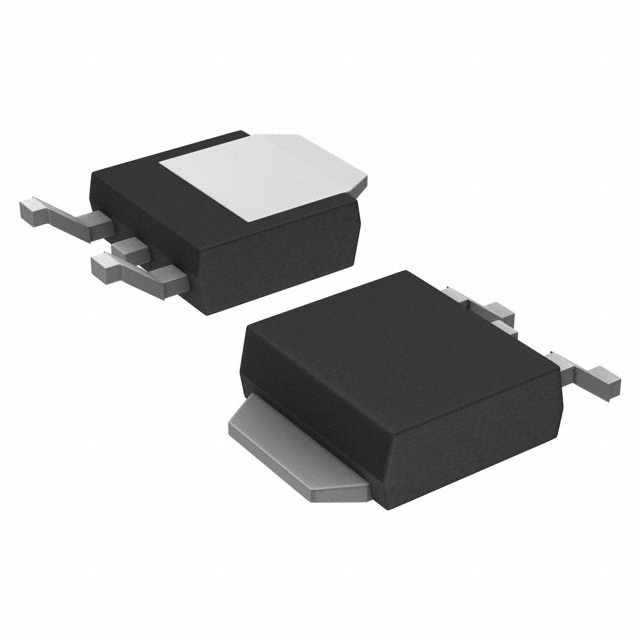

MOSFET N-CH 40V 20A DPAK
| Part | Vgs (Max) | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds [Max] | Vgs(th) (Max) @ Id | Package / Case | Mounting Type | Operating Temperature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | FET Type | Power Dissipation (Max) | Drive Voltage (Max Rds On, Min Rds On) | Supplier Device Package | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | 20 V | 15 nC | 985 pF | 2.3 V | DPAK (2 Leads + Tab) SC-63 TO-252-3 | Surface Mount | 150 °C | 40 V | 20 A | 29 mOhm | N-Channel | 27 W | 4.5 V 10 V | DPAK | MOSFET (Metal Oxide) |
