111-00 Series

Catalog

CABLE TIE, METAL CONTENT, NYLON 6.6 (POLYAMIDE 6.6) / METAL PARTICLES, BLUE, 202 MM, 4.6 MM, 50 MM

Part	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Wire/Cable Tie Type	Features	Mounting Type	Material	Tensile Strength	Tensile Strength	Length - Approximate	Color	Width [x]	Width [x]	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Width [y]	Width [y]	Length - Actual	Length - Actual	Length - Approximate [x]	Width	Width

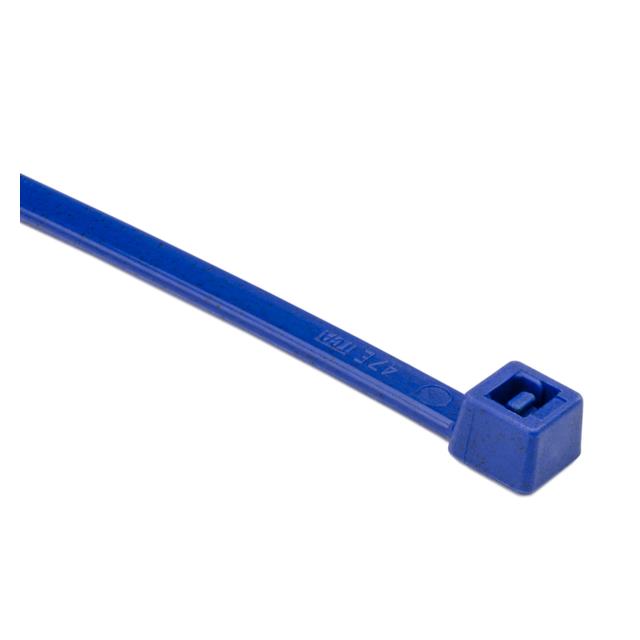

HELLERMANNTYTON 111-00830	50 mm	1.97 in	Locking Standard	Halogen Free	Free Hanging (In-Line)	Metal Detectable Nylon 6/6 Polyamide (PA66)	22.68 kg	50 lbs	7.75 "	Blue	4.6 mm	0.181 in	200 mm	7.87 "	0.656 ft

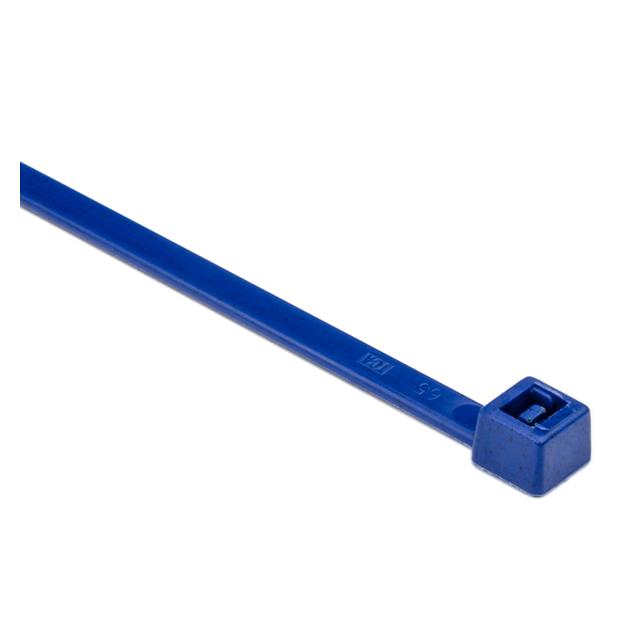

HELLERMANNTYTON 111-00831	110 mm	4.33 in	Locking Standard	Halogen Free	Free Hanging (In-Line)	Metal Detectable Nylon 6/6 Polyamide (PA66)	22.68 kg	50 lbs	15.25 in	Blue	4.6 mm	0.181 in	390 mm		1.28 ft

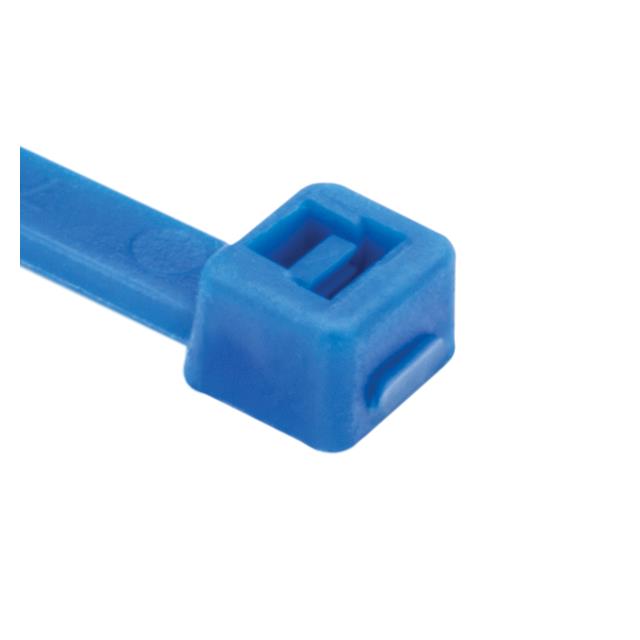

HELLERMANNTYTON 111-00698	36 mm	1.42 in	Locking Standard		Free Hanging (In-Line)	Ethylenterafluorineethylene (ETFE)	13.61 kg	30 lbs	6 in	Blue			150 mm	5.91 "	0.492 ft	0.138 in	3.5 mm

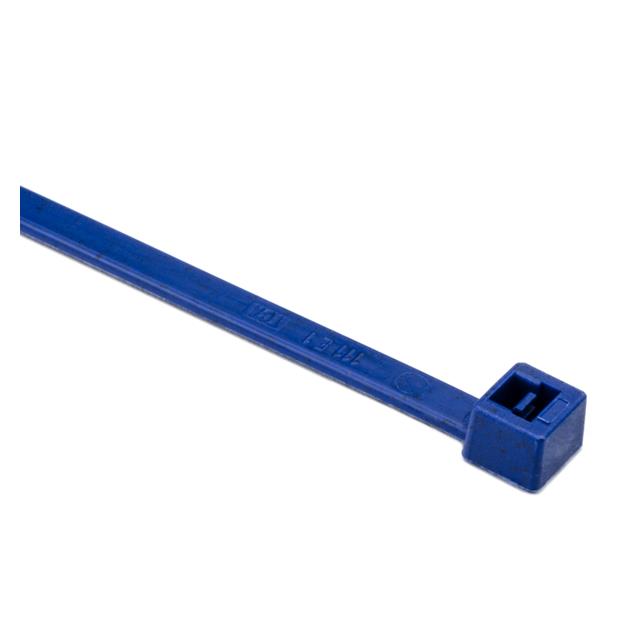

HELLERMANNTYTON 111-00829	35 mm	1.38 in	Locking Standard	Halogen Free	Free Hanging (In-Line)	Metal Detectable Nylon 6/6 Polyamide (PA66)	13.61 kg	30 lbs	6 in	Blue			150 mm	5.91 "	0.492 ft	0.138 in	3.5 mm

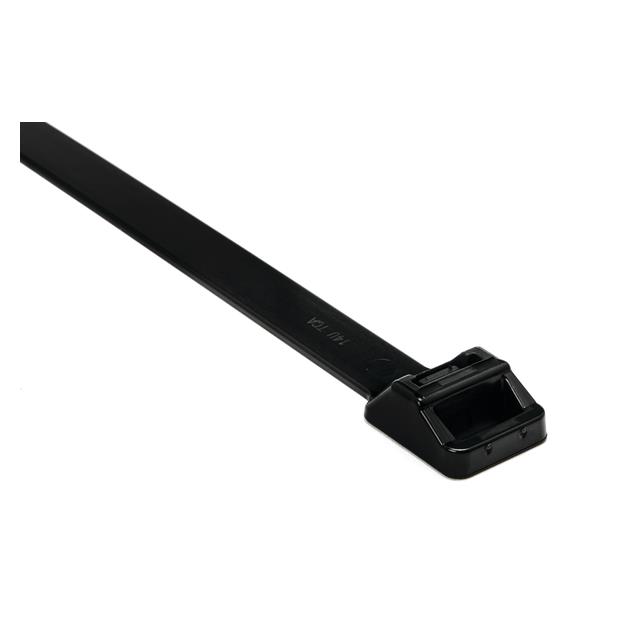

HELLERMANNTYTON 111-00925	150 mm	5.91 in	Locking Standard	UV Resistant	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	113.4 kg	250 lbs	22.25 in	Black	12.5 mm	0.492 "						565.3 mm	1.855 ft
HELLERMANNTYTON 111-00659	22 mm	0.86 "	Locking Standard		Free Hanging (In-Line)	Ethylenterafluorineethylene (ETFE)	8.16 kg	18 lbs		Blue	2.5 mm	0.098 in	100 mm	3.93 in	0.328 ft					4 in
HELLERMANNTYTON 111-00965	150 mm	5.91 in	Locking Standard		Free Hanging (In-Line)	Nylon 4/6 Polyamide (PA46)	79.4 kg	175 lbs		Brown			530 mm		1.739 ft					20.75 in	0.35 in	8.89 mm
HELLERMANNTYTON 111-00718	104.9 mm	4.13 in	Locking Standard		Free Hanging (In-Line)	Ethylenterafluorineethylene (ETFE)	22.68 kg	50 lbs	15 in	Blue						0.185 in	4.7 mm
HELLERMANNTYTON 111-00732	50 mm	1.97 in	Locking Standard		Free Hanging (In-Line)	Ethylenterafluorineethylene (ETFE)	22.68 kg	50 lbs	7.75 "	Blue	4.6 mm	0.181 in	200 mm	7.87 "	0.656 ft
HELLERMANNTYTON 111-00931	50 mm	1.97 in	Locking Standard	Heat Stabilized Impact Resistant UV Resistant	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	22.68 kg	50 lbs	8 in	Black	4.6 mm	0.181 in	202 mm	7.95 in	0.663 ft
