XZVG81 Series
Manufacturer: SunLED
Beta
⌘K

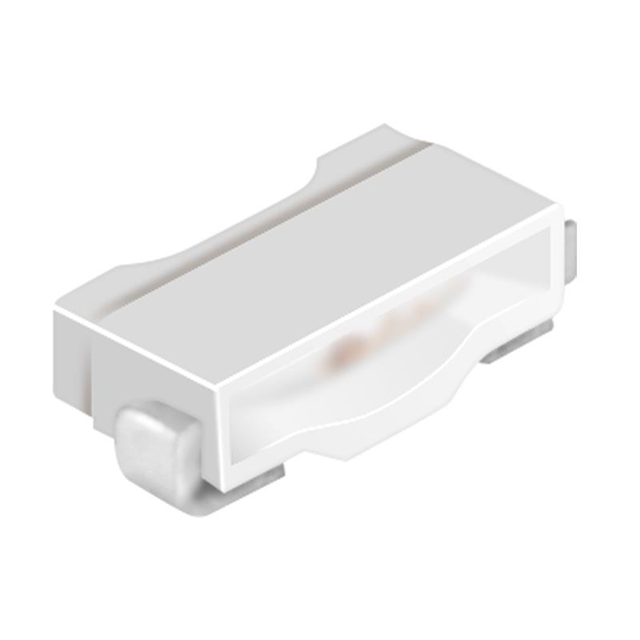

LED GREEN CLEAR CHIP SMD R/A
| Part | Height (Max) [Max] [z] | Millicandela Rating | Lens Size [x] | Lens Size [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Lens Transparency | Configuration | Current - Test | Wavelength - Dominant | Color | Package / Case | Lens Style | Lens Color | Viewing Angle | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 0.8 mm 0.9 mm | 59 mcd 69 mcd | 2.3 mm | 0.57 mm | 1.2 mm 14 mm | 2.8 mm | 2.1 V | Clear | Independent Standard | 20 mA | 570 nm | Green | 2-SMD J-Lead | Irregular Rectangle with Flat Top | Colorless | 110 ° | Chip LED | Right Angle Surface Mount |
