21650 Series
Manufacturer: Pflitsch
Beta
⌘K

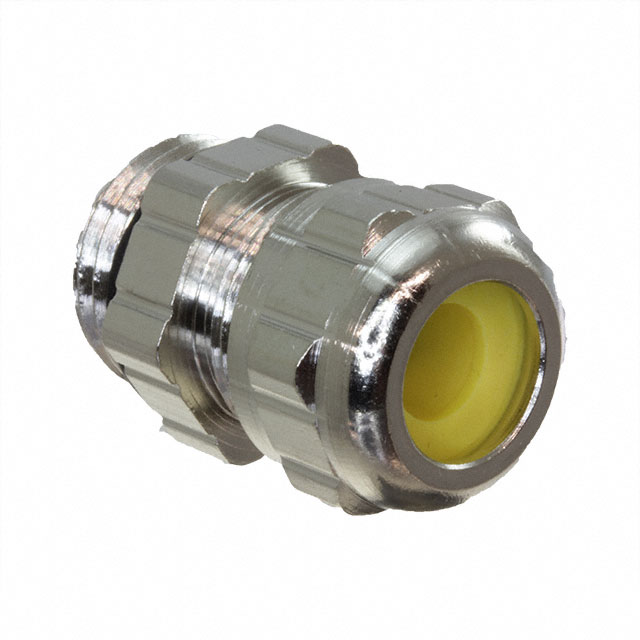

CABLE GLAND 4.06-6.6MM PG9 BRASS
| Part | Type | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Material | Includes | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Panel Hole Size | Panel Hole Size | Color | Thread Length | Thread Length | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pflitsch | Cable Gland | 6.6 mm | 0.26 in | -40 C | 300 °C | IP68 - Dust Tight Waterproof NEMA 4X | Brass Nickel Plated | Sealing Ring | 4.06 mm | 0.16 in | 15.2 mm | 0.6 in | Silver | 6.1 mm | 0.24 in | PG9 |
