SI-N8U Series

Catalog

LED MOD ACOM DLE WHT SQU 3500K

Part	Lumens/Watt @ Current - Test	Color	Viewing Angle	CCT (K)	Luminous Flux @ Current/Temperature	Lens Type	CRI (Color Rendering Index)	Height [z]	Type	Configuration	Temperature - Test	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Features	Current - Max [Max]	Size / Dimension [diameter]	Current - Test	Height
Samsung Semiconductor, Inc. SI-N8U1123B1US	104 lm/W	Warm White	115 °	3500 K	1180 lm	Flat	80	12.5 mm	LED Module	Square	25 °C	55 mm	55 mm	120 VAC

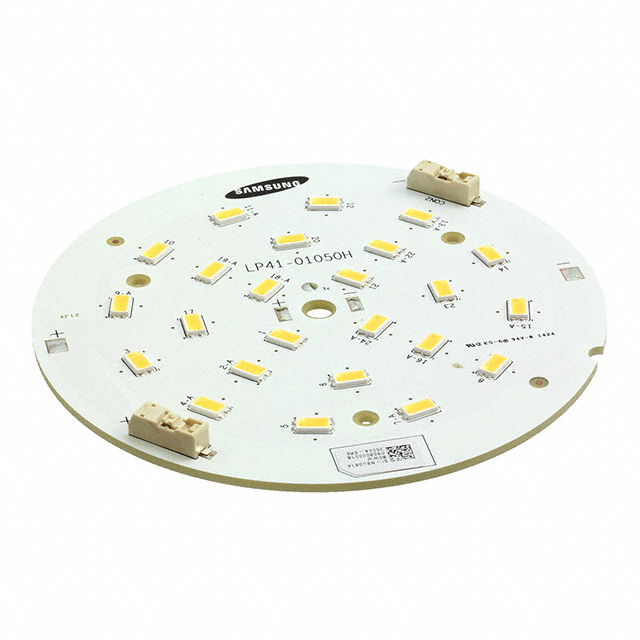

Samsung Semiconductor, Inc. SI-N8U0814B0WW	127 lm/W	Warm White	115 °		1070 lm	Flat	80	5.8 mm	LED Module	Round	55 °C			24 V	With Connector	450 mA	90 mm	350 mA
Samsung Semiconductor, Inc. SI-N8U1254B0WW	180 lm/W	Warm White	120 °	3500 K	2150 lm	Flat	80	5.2 mm	LED Module	Round	25 °C			27.8 V	With Connector		110 mm	430 mA
Samsung Semiconductor, Inc. SI-N8U3616E0WW	29 lm/W	Warm White	140 °	3500 K	1050 lm		80		LED Module	Square	65 °C	28 mm	28 mm	23.4 V		2.8 A		1.56 A	2.2 mm
Samsung Semiconductor, Inc. SI-N8U1113B1US	105 lm/W	Warm White	115 °	3500 K	1190 lm	Flat	80	12.5 mm	LED Module	Square	25 °C	55 mm	55 mm	120 VAC
Samsung Semiconductor, Inc. SI-N8U1816E0WW	113 lm/W	Warm White	140 °	3500 K	2060 lm		80		LED Module	Square	65 °C	19 mm	19 mm	23.4 V		1.4 A		780 mA	2.2 mm
