SWI18 Series

Manufacturer: CUI Inc.

Catalog

AC/DC WALL MOUNT ADAPTER 5V 15W

Part	Current - Output (Max) [Max]	Applications	Standard Number	Cord Length	Cord Length	Input Connector	Power (Watts)	No Load Power Consumption	Output Connector	Output Connector [diameter]	Output Connector [x]	Voltage - Output	Approval Agency	Efficiency	Weight [custom]	Weight [custom]	Form	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Polarization	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Input Type	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Output Connector [z]	Weight	Weight	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]

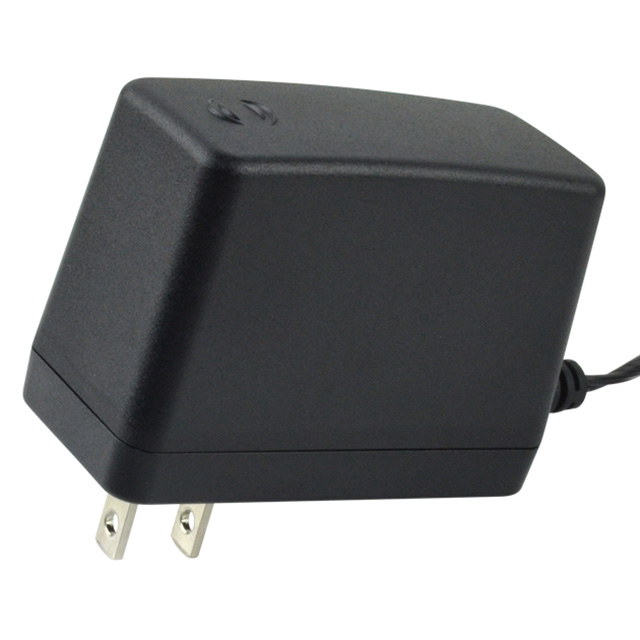

CUI Inc. SWI18-5-N-P5	3 A	ITE (Commercial)	60950-1 62368-1 C22.2 No. 60950-1	1.5 m	59 in	NEMA 1-15P	15 W	100 mW	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	5 V	CB Scheme CCC CSA FCC IEC PSE UL	Level VI	0.375 lb	170.1 g	Wall Mount	34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	40 °C	Positive Center	264 VAC	90 VAC	North America	Fixed Blade
CUI Inc. SWI18-12-N-P5R	1.6 A	ITE (Commercial)	60950-1 62368-1 C22.2 No. 60950-1	1.5 m	59 in	NEMA 1-15P	19 W	100 mW	Barrel Plug R/A			12 V	CB Scheme CCC CSA FCC IEC PSE UL	Level VI	0.375 lb	170.1 g	Wall Mount	34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	40 °C	Positive Center	264 VAC	90 VAC	North America	Fixed Blade	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SWI18-24-N-P6R	0.8 A	ITE (Commercial)	60950-1 62368-1 C22.2 No. 60950-1	1.5 m	59 in	NEMA 1-15P	19 W	100 mW	Barrel Plug R/A	2.5 mm 5.5 mm		24 V	CB Scheme CCC CSA FCC IEC PSE UL	Level VI	0.375 lb	170.1 g	Wall Mount	34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	40 °C	Positive Center	264 VAC	90 VAC	North America	Fixed Blade				9.5 mm

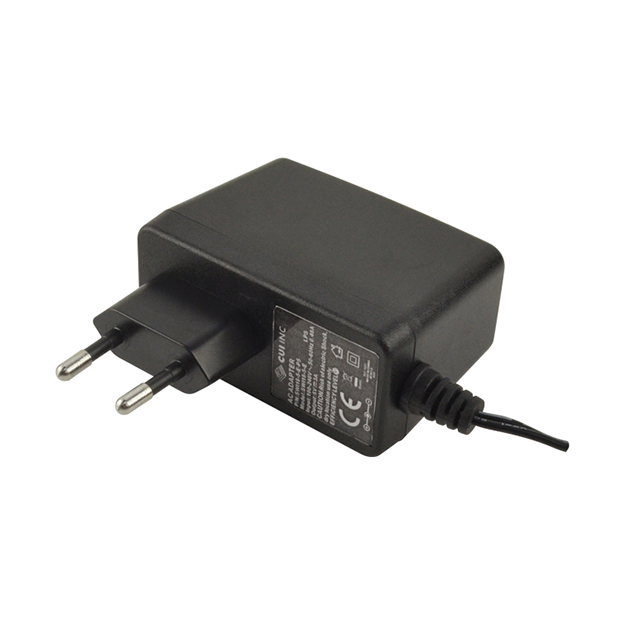

CUI Inc. SWI18-9-E-P5	2.2 A	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	1.5 m	59 in	CEE 7/16	20 W	100 mW	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	9 V	CB Scheme EN IEC	CoC Tier 2 Level VI			Wall Mount		34 mm	70 mm			72 mm	40 °C	Positive Center	264 VAC	90 VAC	Europe	Fixed Blade					154.22 g	0.34 lb	1.34 in	2.76 in	2.83 in
CUI Inc. SWI18-12-N-N5	1.6 A	ITE (Commercial)	60950-1 62368-1 C22.2 No. 60950-1	1.5 m	59 in	NEMA 1-15P	19 W	100 mW	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	12 V	CB Scheme CCC CSA FCC IEC PSE UL	Level VI			Wall Mount		34 mm	69 mm			72 mm	40 °C	Negative Center	264 VAC	90 VAC	North America	Fixed Blade							1.34 in	2.72 in	2.83 in
CUI Inc. SWI18-12-E-P5	1.6 A	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	1.5 m	59 in	CEE 7/16	18 W	100 mW	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	12 V	CB Scheme EN IEC	CoC Tier 2 Level VI			Wall Mount		34 mm	70 mm			72 mm	40 °C	Positive Center	264 VAC	90 VAC	Europe	Fixed Blade					154.22 g	0.34 lb	1.34 in	2.76 in	2.83 in
CUI Inc. SWI18-9-E-P6	2.2 A	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	1.5 m	59 in	CEE 7/16	20 W	100 mW	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	9 V	CB Scheme EN IEC	CoC Tier 2 Level VI			Wall Mount		34 mm	70 mm			72 mm	40 °C	Positive Center	264 VAC	90 VAC	Europe	Fixed Blade					154.22 g	0.34 lb	1.34 in	2.76 in	2.83 in
CUI Inc. SWI18-5-E-P5	3 A	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	1.5 m	59 in	CEE 7/16	15 W	100 mW	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	5 V	CB Scheme EN IEC	CoC Tier 2 Level VI			Wall Mount		34 mm	70 mm			72 mm	40 °C	Positive Center	264 VAC	90 VAC	Europe	Fixed Blade					154.22 g	0.34 lb	1.34 in	2.76 in	2.83 in
CUI Inc. SWI18-24-E-P5R	0.8 A	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	1.5 m	59 in	CEE 7/16	19 W	100 mW	Barrel Plug R/A			24 V	CB Scheme EN IEC	CoC Tier 2 Level VI			Wall Mount		34 mm	70 mm			72 mm	40 °C	Positive Center	264 VAC	90 VAC	Europe	Fixed Blade	9.5 mm	5.5 mm	2.1 mm		154.22 g	0.34 lb	1.34 in	2.76 in	2.83 in
CUI Inc. SWI18-5-N-P6R	3 A	ITE (Commercial)	60950-1 62368-1 C22.2 No. 60950-1	1.5 m	59 in	NEMA 1-15P	15 W	100 mW	Barrel Plug R/A	2.5 mm 5.5 mm		5 V	CB Scheme CCC CSA FCC IEC PSE UL	Level VI	0.375 lb	170.1 g	Wall Mount	34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	40 °C	Positive Center	264 VAC	90 VAC	North America	Fixed Blade				9.5 mm
