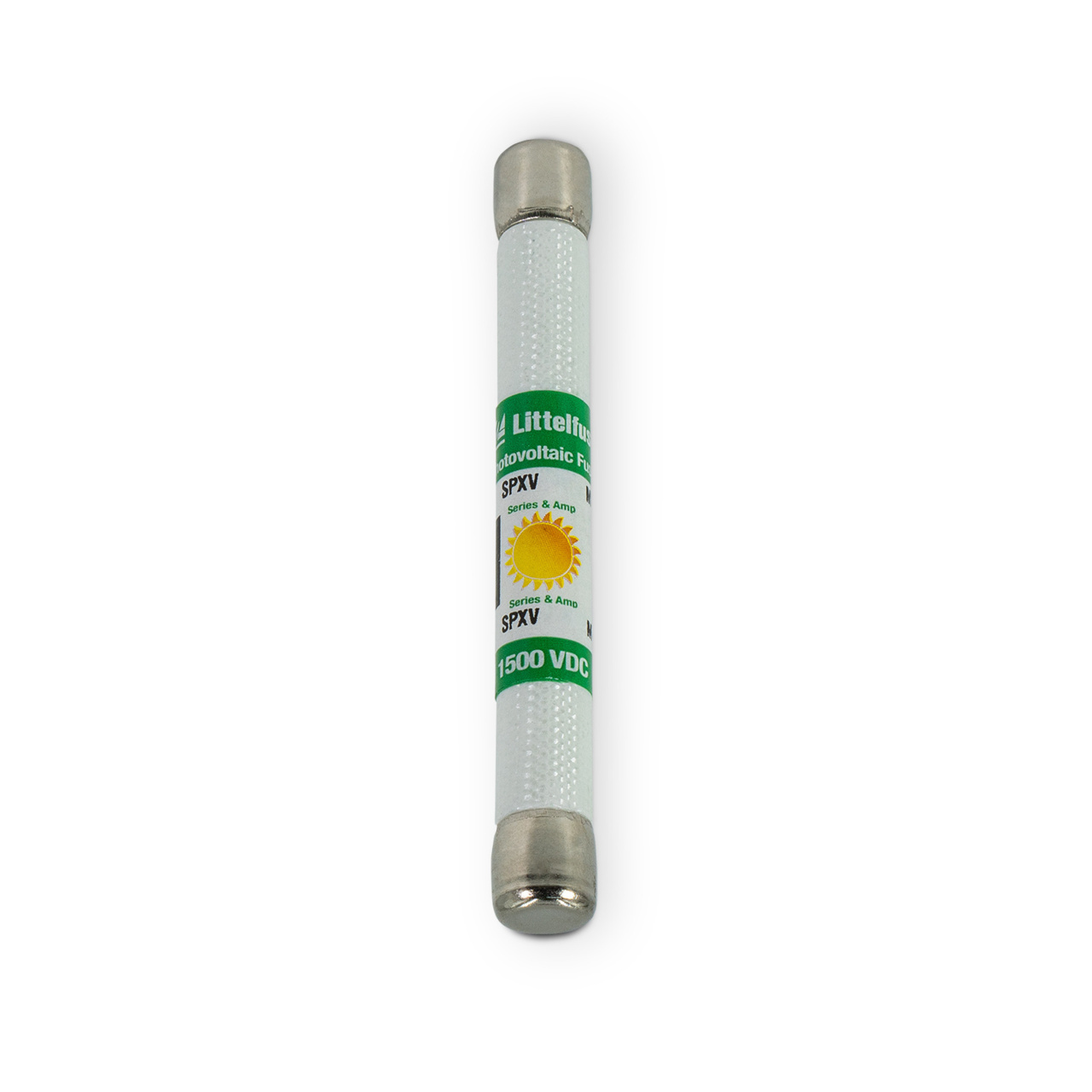

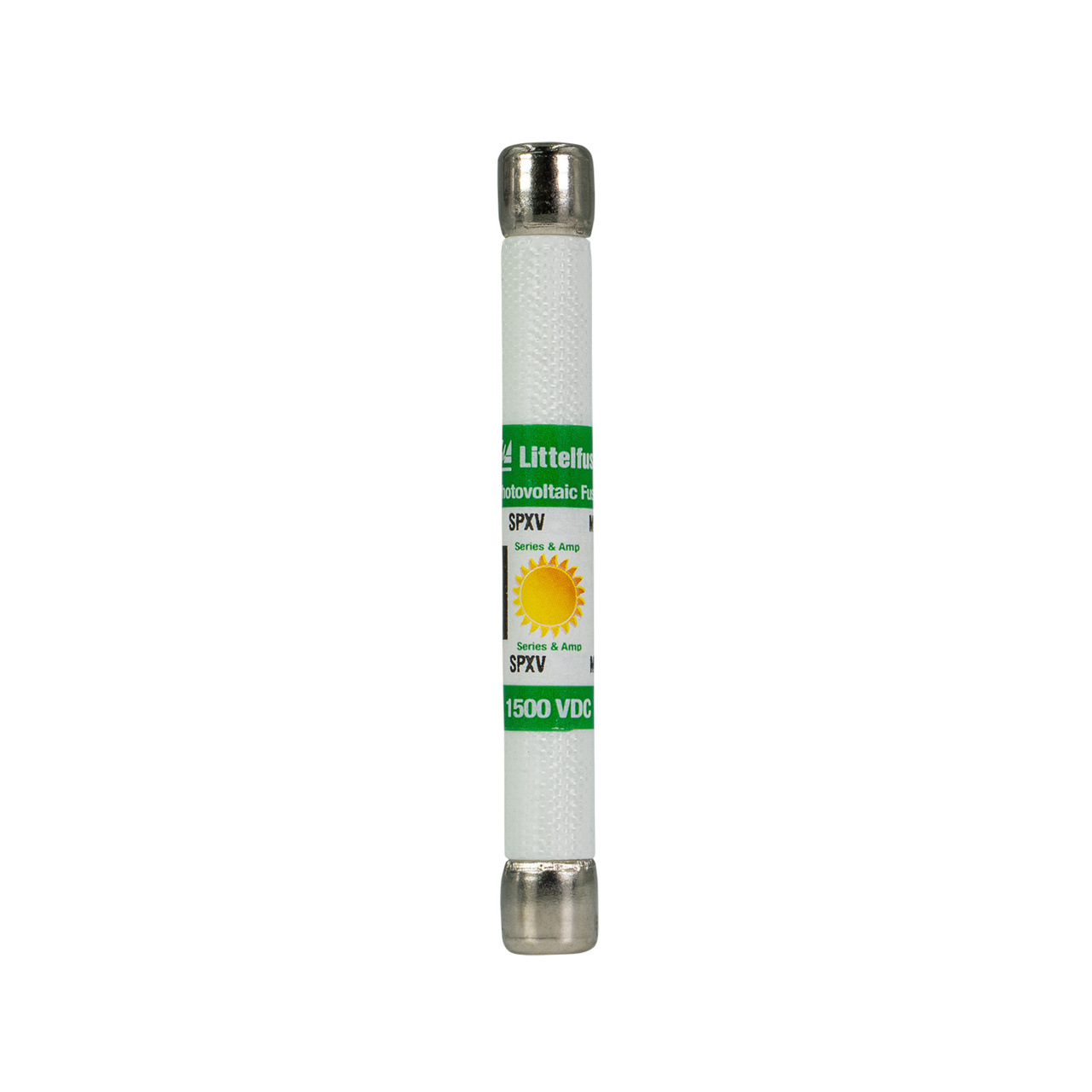

SPXV025-M Series

1500 VDC 25A CYL COMPACT FUSE-10 PACK

Catalog

1500 VDC 25A CYL COMPACT FUSE-10 PACK

Part	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current Rating (Amps)	Voltage Rating - DC	Fuse Type	Melting I²t	Breaking Capacity @ Rated Voltage	DC Cold Resistance	Response Time	Mounting Type	Package / Case	Approval Agency
Littelfuse/Commercial Vehicle Products SPXV025.TXM	Solar (Photovoltaic)	84.65 mm	3.333 "	10.31 mm	0.406 "	25 A	1.5 kVDC	Cartridge	2304	50 kA	0.00665 Ohms	Fast Blow	Requires Holder	Cartridge Non-Standard	CE gPV UL

1500 VDC 25A CYL COMPACT FUSE-10 PACK

• UL 248-19 Listed

• 50 kA interrupting rating

The Littelfuse SPXV solar string fuse is designed specifically for 1–60 A 1500 V dc applications.
