PVQ-PS12 Series

Catalog

AC/DC DESKTOP ADAPTER 12V 30W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Input Connector	Region Utilized	Power (Watts)	Form	Polarization	Cord Length	Cord Length	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Output Connector [custom]	Output Connector	Output Connector [custom]	Output Connector [custom]	Voltage - Output	Input Type

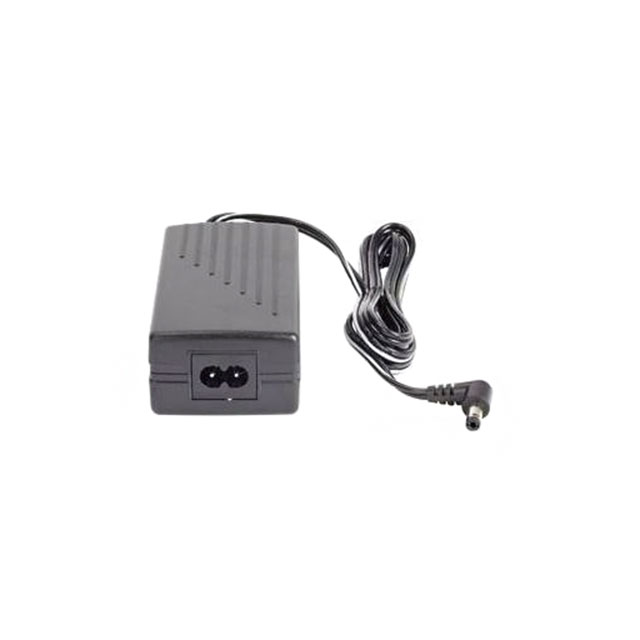

Panduit Corp PVQ-PS12VDC-S	100 VAC	250 VAC	2.5 A	IEC 320-C8	North America	30 Watts	Desktop (Class II)	Positive Center	1.83 m	72 in	50 °C	1.32 in	110 mm	33.5 mm	54 mm	2.13 in	4.33 in	ITE (Commercial)	9.5 mm	Barrel Plug R/A	5.5 mm	2.1 mm	12 V	Cord (Sold Separately)
Panduit Corp PVQ-PS12VDC-C	100 VAC	250 VAC	2.5 A	IEC 320-C8		30 Watts	Desktop (Class II)	Positive Center	1.83 m	72 in	50 °C	1.32 in	110 mm	33.5 mm	54 mm	2.13 in	4.33 in	ITE (Commercial)	9.5 mm	Barrel Plug R/A	5.5 mm	2.1 mm	12 V	Cord (Sold Separately)
Panduit Corp PVQ-PS12VDC-E	100 VAC	250 VAC	2.5 A	IEC 320-C8		30 Watts	Desktop (Class II)	Positive Center	2 m	78.74 in	50 °C	1.32 in	110 mm	33.5 mm	54 mm	2.13 in	4.33 in	ITE (Commercial)	9.5 mm	Barrel Plug R/A	5.5 mm	2.1 mm	12 V	Cord (Sold Separately)
