1318123 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

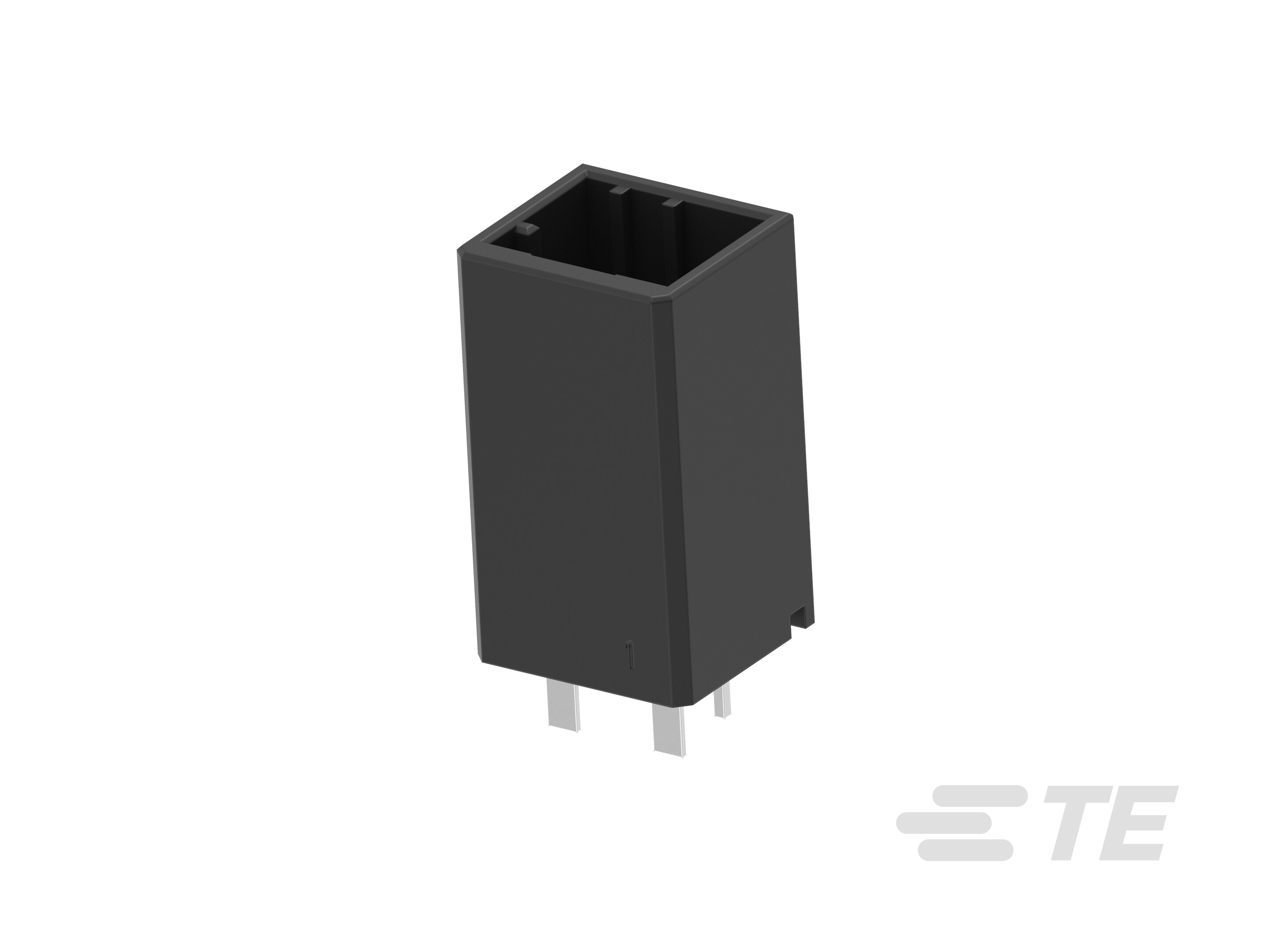

DYNAMIC D2100 HDR V ASSY 3P Y
| Part | Current Rating (Amps) | Contact Type | Contact Finish - Mating | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Shrouding | Contact Length - Post [x] | Contact Length - Post [x] | Mounting Type | Material Flammability Rating | Voltage Rating | Connector Type | Insulation Material | Number of Rows | Style | Insulation Color | Fastening Type | Termination | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Applications | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 5 A | Tab | Gold | 17.78 mm | 0.7 in | 2.5 mm | 0.098 in | Shrouded - 4 Wall | 0.134 in | 3.4 mm | Through Hole | UL94 V-0 | 250 VAC | Header | Glass Filled Polyester Thermoplastic | 1 | Board to Board Cable | Black | Detent Lock | Solder | Tin | 15 µin | 0.38 µm | Copper Alloy | General Purpose Industrial | All | 105 ░C | -55 °C | Rectangular |
