SW-PB7 Series
Manufacturer: Adam Tech
Beta
⌘K
ANTI-VANDAL PUSHBUTTON SWITCH, 1
| Part | Electrical Life | Type | Switch Function | Current Rating (Amps) | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Actuator Marking | Mounting Type | Circuit | Color - Actuator/Cap | Actuator Type | Voltage Rating - AC | Termination Style | Voltage Rating - DC | Illumination Voltage (Nominal) | Illumination Type, Color | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

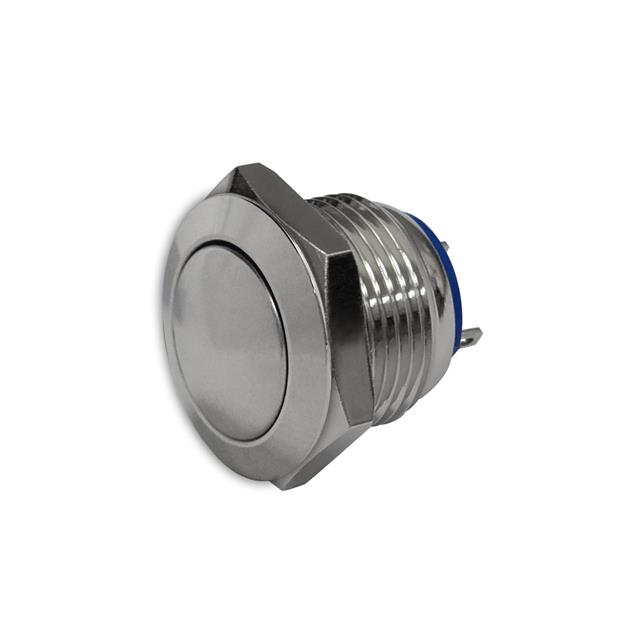

 Adam Tech | 50000 Cycles | Anti-Vandal | Off-Mom | 500 mA | IP65 - Dust Tight Water Resistant | 55 °C | -25 °C | 16.5 mm | No Marking | Panel Mount Front | SPST-NO | Silver | Button Round | 220 V | Solder Lug | |||||

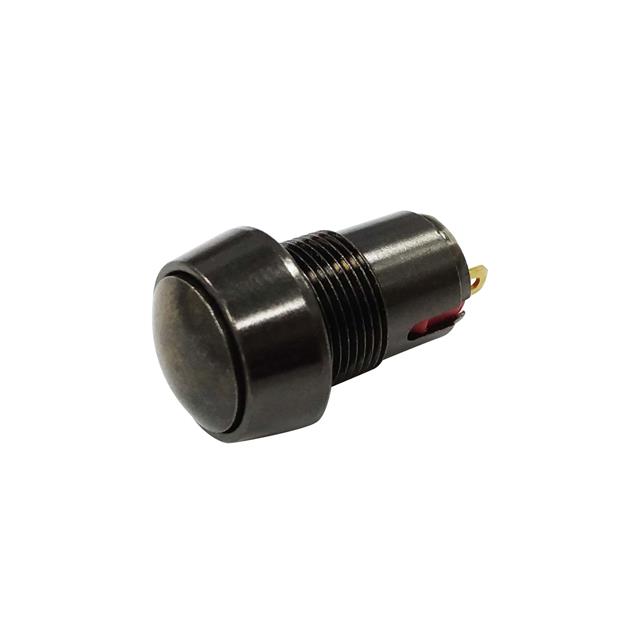

 Adam Tech | 200000 Cycles | Anti-Vandal | Off-Mom | 2 A 100 mA | 85 °C | -30 ░C | 12.1 mm | No Marking | Panel Mount Front | SPST-NO | Button Domed Round | 125 V | Solder Quick Connect - 0.110" (2.8mm) | 24 V | ||||||

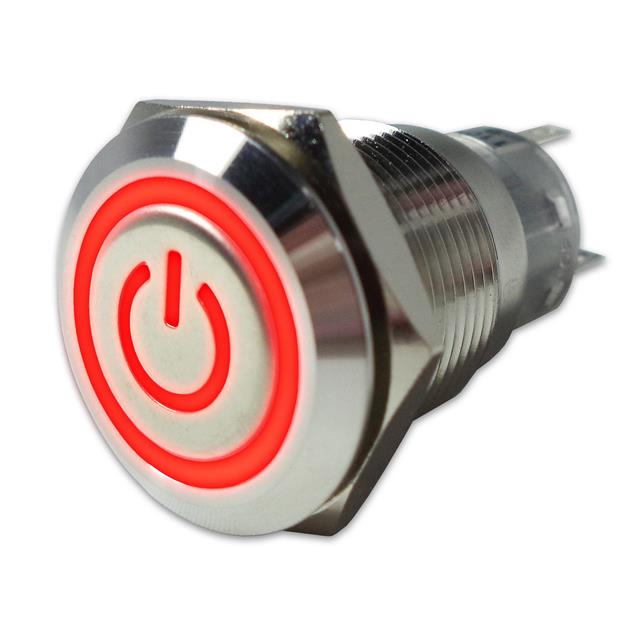

 Adam Tech | 50000 Cycles | Anti-Vandal Illuminated | On-On | IP67 - Dust Tight Waterproof | 55 °C | -25 °C | 19 mm | No Marking | Panel Mount Front | SPDT | Silver | Button Round | Solder Lug | 12 VAC/DC | LED Red | |||||

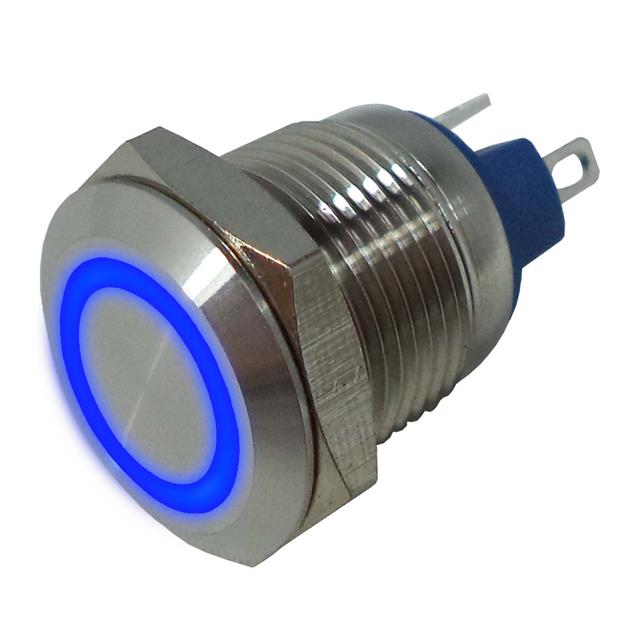

 Adam Tech | 200000 Cycles | Anti-Vandal Illuminated | Off-Mom | 2 A | IP67 - Dust Tight Waterproof | 55 °C | -25 °C | 12 mm | No Marking | Panel Mount Front | SPST-NO | Silver | Button Round | Solder Lug | 36 VDC | 12 VAC/DC | Blue LED | |||

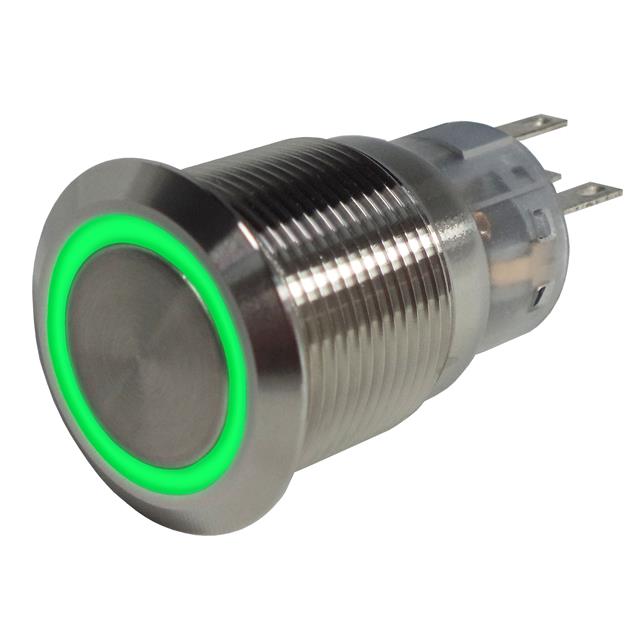

 Adam Tech | 50000 Cycles | Anti-Vandal Illuminated | On-On | IP67 - Dust Tight Waterproof | 55 °C | -25 °C | 19 mm | No Marking | Panel Mount Front | SPDT | Silver | Button Round | Solder Lug | 12 VAC/DC | Green LED | |||||

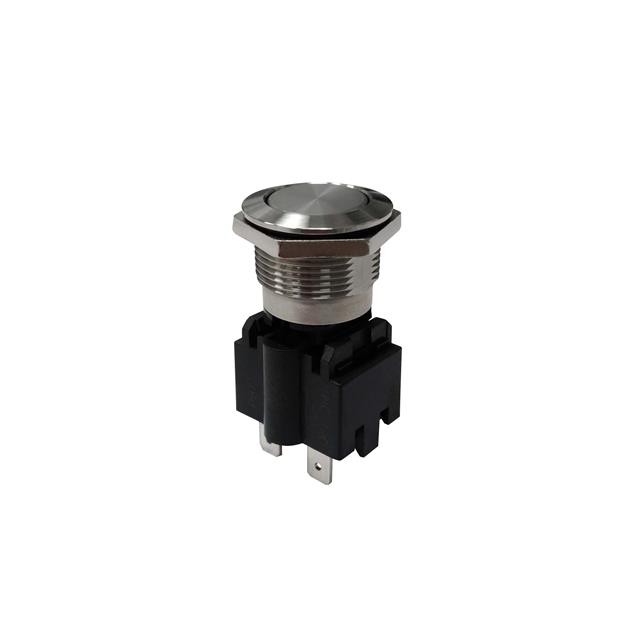

 Adam Tech | 10000 Cycles | Anti-Vandal | Off-Mom | 16 A | IP65 - Dust Tight Water Resistant | 85 °C | -30 ░C | No Marking | Panel Mount Front | SPST-NO | Silver | Button Round | 125 V | Solder Quick Connect | 4.7 mm | 0.187 in |
