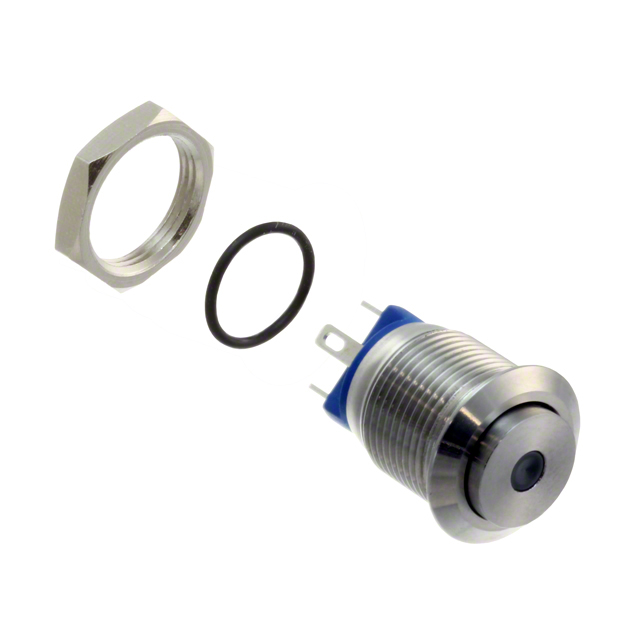

PV0H240 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH: VANDAL RESISTANT; POS: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)
| Part | Electrical Life | Mechanical Life | Illumination Type, Color | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Color - Actuator/Cap | Actuator Type | Type | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Mounting Type | Switch Function | Termination Style | Ingress Protection | Illumination Voltage (Nominal) | Electrical Life | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 50 000 000 | 1000000 Cycles | Green/Red LED | 55 °C | -20 ░C | SPST-NO | Silver | Button Round | Illuminated Standard | 2 A | 12 mm | 36 VDC | Panel Mount Front | Off-Mom | Solder Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight Water Resistant | 1.8 VDC 2.8 VDC | ||
 E-Switch | |||||||||||||||||||
 E-Switch | 1000000 Cycles | Blue LED | 55 °C | -20 ░C | SPST-NO | Silver | Button Round | Anti-Vandal Illuminated | 2 A | 12.2 mm Dia | 48 V | Panel Mount Front | Off-Mom | Solder Lug | IP65 - Dust Tight Water Resistant | 2.8 VDC | 50000 Cycles | No Marking | |
E-Switch | 1000000 Cycles | Green LED | 55 °C | -20 ░C | SPST-NO | Silver | Button Round | Anti-Vandal Illuminated | 2 A | 12.2 mm Dia | 48 V | Panel Mount Front | Off-Mom | Solder Lug | IP65 - Dust Tight Water Resistant | 2.8 VDC | 50000 Cycles | No Marking | |
 E-Switch | 1000000 Cycles | LED Red | 55 °C | -20 ░C | SPST-NO | Silver | Button Round | Anti-Vandal Illuminated | 2 A | 12.2 mm Dia | 48 V | Panel Mount Front | Off-Mom | Solder Lug | IP65 - Dust Tight Water Resistant | 1.8 VDC | 50000 Cycles | No Marking |
