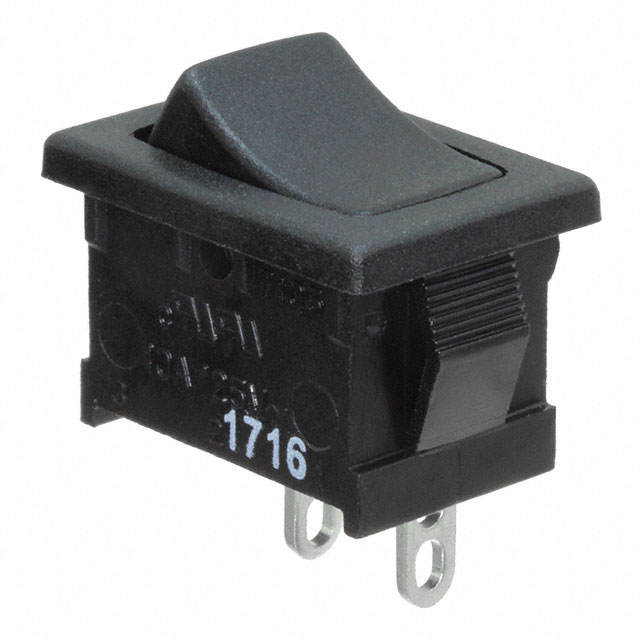

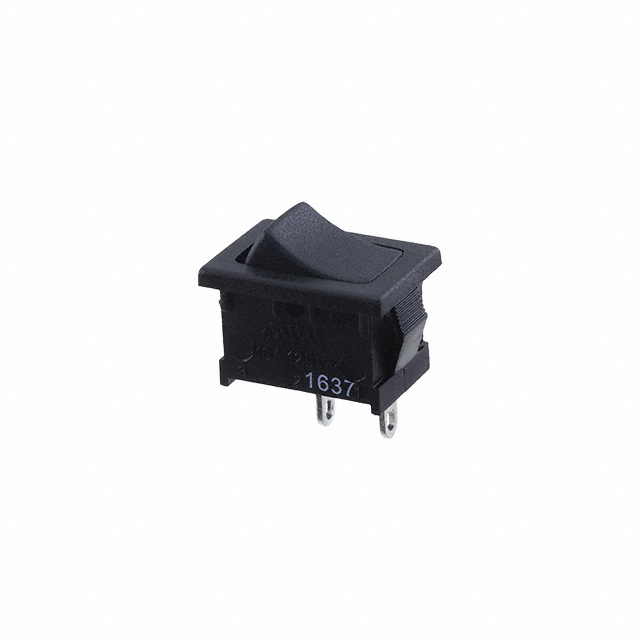

RA12131 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER SPST 11A 125V
| Part | Electrical Life | Current Rating (Amps) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Approval Agency | Mounting Type | Termination Style | Voltage Rating - AC | Circuit | Switch Function | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | 11 A | 19.4 mm | 13.1 mm | ON OFF | 55 °C | -20 ░C | Black | cULus | Panel Mount Snap-In | Solder Lug | 125 V | SPST | On-Off | Concave (Curved) |
 E-Switch | 10000 Cycles | 10 A | 19.4 mm | 13.1 mm | Rectangle on End | 55 °C | -20 ░C | Black | cULus | Panel Mount Snap-In | Solder Lug | 125 V | SPST | On-Off | Concave (Curved) |
 E-Switch | 10000 Cycles | 10 A | 19.4 mm | 13.1 mm | No Marking | 55 °C | -20 ░C | Black | cULus | Panel Mount Snap-In | Solder Lug | 125 V | SPST | On-Off | Concave (Curved) |
E-Switch | 10000 Cycles | 11 A | 19.4 mm | 13.1 mm | O I | 55 °C | -20 ░C | Black | cULus | Panel Mount Snap-In | Solder Lug | 125 V | SPST | On-Off | Concave (Curved) |
E-Switch | 10000 Cycles | 11 A | 19.4 mm | 13.1 mm | O - | 55 °C | -20 ░C | Black | cULus | Panel Mount Snap-In | Solder Lug | 125 V | SPST | On-Off | Concave (Curved) |
