M13232 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

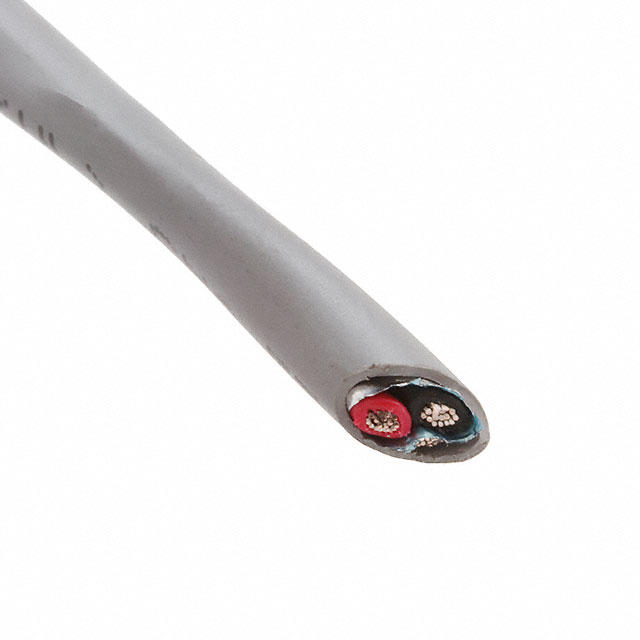

CABLE 2CON 20AWG SLATE SHLD 500'
| Part | Shield Material | Shield Coverage | Cable Type | Wire Gauge | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Shield Type | Conductor Insulation | Conductor Material | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Multi-Conductor | 20 AWG | 152.4 m | 500 ft | 0.2 in | 5.08 mm | 300 VDC | 28 AWG | 7 | 2 | Foil | Polyethylene (PE) | Copper Tinned | Slate | 0.028 in | 0.711 mm | Poly-Vinyl Chloride (PVC) | Drain Wire | ||
ALPHA WIRE | Aluminum | 100 % | Multi-Conductor | 20 AWG | 0.2 in | 5.08 mm | 300 VDC | 28 AWG | 7 | 2 | Foil | Polyethylene (PE) | Copper Tinned | Slate | 0.028 in | 0.711 mm | Poly-Vinyl Chloride (PVC) | Drain Wire | 100 ft | 30.5 m |
