19340100 Series
Manufacturer: HARTING
Beta
⌘K

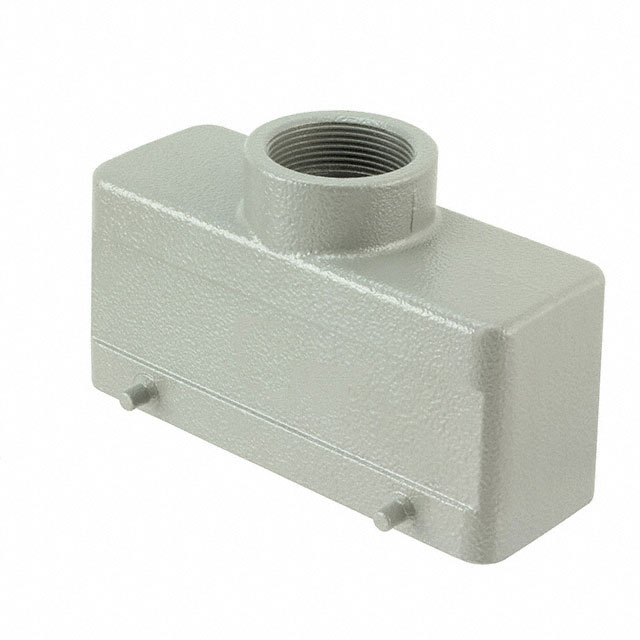

HAN HVE HOOD TOP ENTRY 4 PEGS M32 ROHS COMPLIANT: NA
| Part | Housing Finish | Ingress Protection | Style | Size | Lock Location | Housing Material | Thread Size | Connector Type | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Powder Coated | IP65 - Dust Tight Water Resistant | Top Entry | 24 B | Locking Clip (2) on Base Bottom | Aluminum Die Cast | M32 | Hood | Gray | 125 °C | -40 C | 2.165 " | 55 mm | 43 mm | 1.693 " | 4.724 in | 120 mm | |
 HARTING | ||||||||||||||||||
HARTING | ||||||||||||||||||

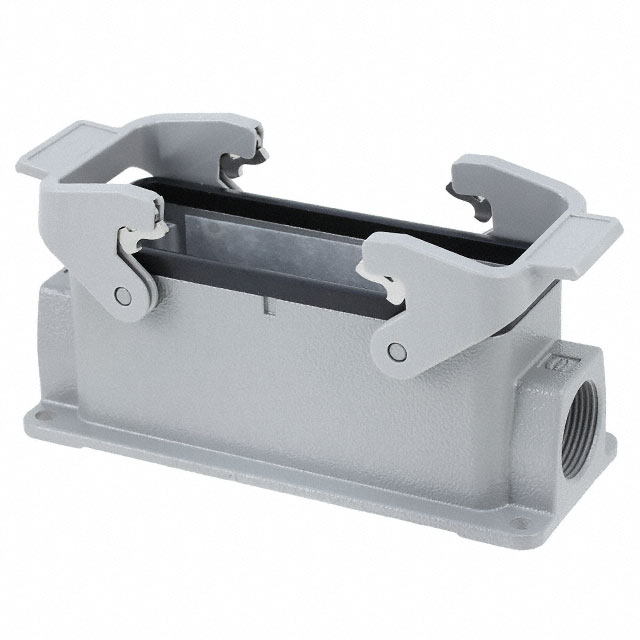

 HARTING | Powder Coated | IP65 - Dust Tight Water Resistant | Side Entry | 24 B | Locking Clip (2) on Base Bottom | Aluminum Die Cast | M25 | Base - Box Mount | Gray | 125 °C | -40 C | 2.205 " | 56 mm | 57 mm | 2.244 " | 5.669 in | 144 mm | Feed Through |

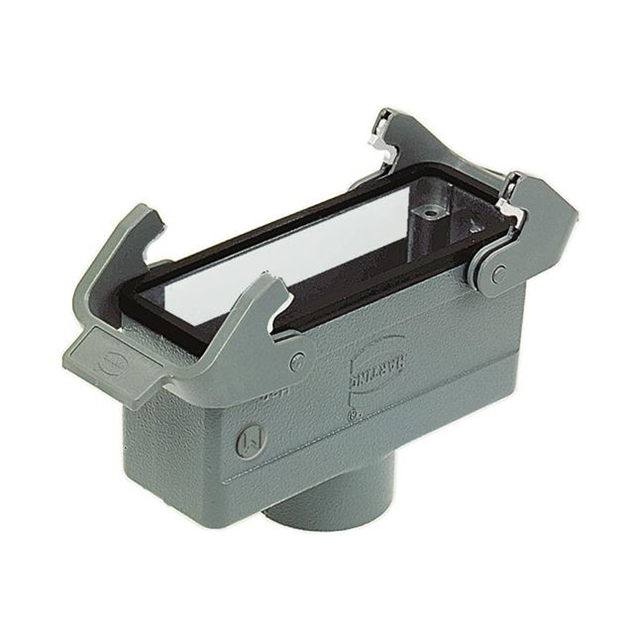

 HARTING | Powder Coated | IP65 - Dust Tight Water Resistant | Bottom Entry Top or Bottom Entry | 24 B | Locking Clip (2) on Hood Top | Aluminum Die Cast | M32 | Hood - Coupling | Gray | 125 °C | -40 C | 2.26 in | 57.4 mm | 43 mm | 1.693 " | 4.724 in | 120 mm | Cable to Cable |
