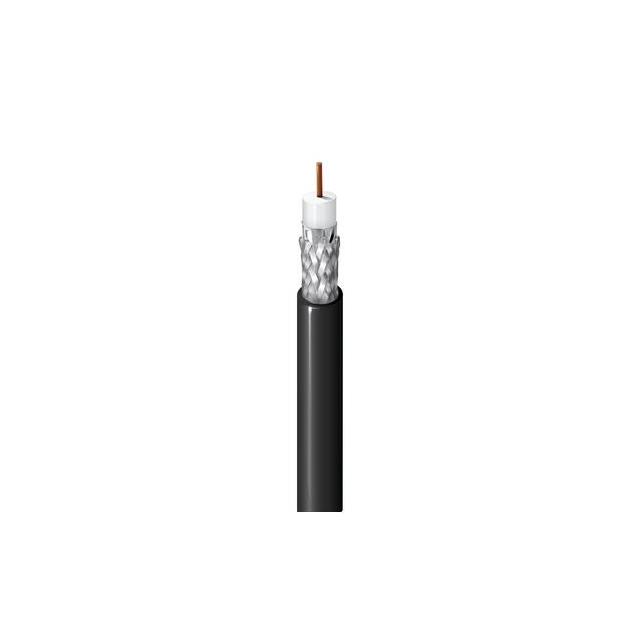

7808A Series
Manufacturer: Belden Inc.
Beta
⌘K
RF240 WIRELESS 50 OHM COAX PO
| Part | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Shield Coverage | Conductor Material | Cable Type | Jacket (Insulation) Material | Shield Type | Cable Group | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Jacket Color | Wire Gauge | Length [x] | Length [x] | Conductor Strand |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester Copper Tinned | 3.81 mm | 0.15 in | 80 °C | -40 C | 86 | 95 % 100 % | Copper Bare | Coaxial | Polyethylene (PE) | Braid Foil | RG-58 | 0.24 " | 6.1 mm | RF Signal | Black | 15 AWG | 304.8 m | 1000 ft | Solid |
