PLR375C Series
Manufacturer: Cinch Connectivity Solutions Trompeter
Beta
⌘K
CONN TRT PLUG R/A CRIMP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Mating Cycles | Includes | Body Material | Body Finish | Center Contact Plating | Shield Termination | Contact Termination | Connector Style | Number of Ports | Center Contact Material | Fastening Type | Connector Type | Mounting Type | Housing Color | Cable Group | Frequency - Max [Max] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

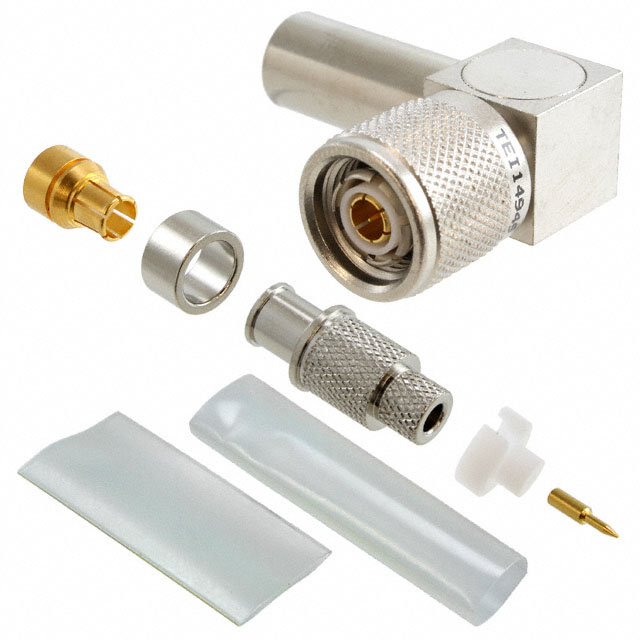

 Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 400 V | 500 | 1 Connector 1 Heat Shrink 1 Strain Relief | Brass | Nickel | Gold | Crimp | Crimp | TRT Twinaxial | 1 | Beryllium Copper | Threaded | Plug Male Pin (Concentric) | Free Hanging (In-Line) Right Angle | Silver | Raychem 10614 | 500 MHz | Non-Constant |
 Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 400 V | 500 | 1 Connector 1 Heat Shrink 1 Strain Relief | Brass | Nickel | Gold | Crimp | Crimp | TRT Twinaxial | 1 | Beryllium Copper | Threaded | Plug Male Pin (Concentric) | Free Hanging (In-Line) Right Angle | Silver | M17/176-00002 | 500 MHz | Non-Constant |

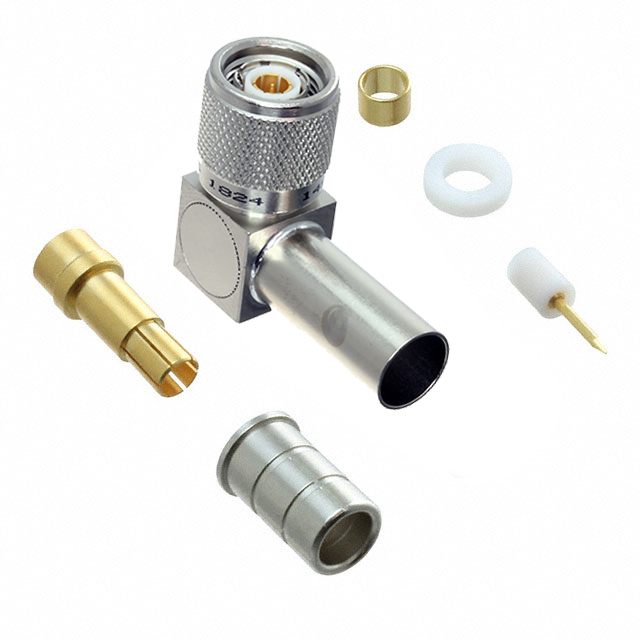

 Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 400 V | 500 | 1 Connector 1 Strain Relief | Brass | Nickel | Gold | Crimp | Crimp | TRT Triaxial | 1 | Beryllium Copper | Threaded | Plug Male Pin (Concentric) | Free Hanging (In-Line) Right Angle | Silver | M17/176-00002 TRC-50-2 | 500 MHz | Non-Constant |
