M2021SS Series

Catalog

SWITCH TOGGLE DPST 6A 125V

Part	Electrical Life	Actuator Material	Actuator Length [x]	Actuator Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Features	Termination Style	Bushing Thread	Illumination	Panel Cutout Dimensions [diameter]	Switch Function	Voltage Rating - AC	Mounting Type
NKK Switches M2021SS1W01-BG	25000 Steps	Brass Chrome Plated	13.5 mm	Standard Round with Cap	30 V	85 °C	-30 ░C	DPST	4 A 6 A	Blue Cap	Solder Lug	1/4-40	Non-Illuminated	6.5 mm	On-Off	125 V	Panel Mount
NKK Switches M2021SS1W01-BB	25000 Steps	Brass Chrome Plated	13.5 mm	Standard Round with Cap	30 V	85 °C	-30 ░C	DPST	4 A 6 A	White Cap	Solder Lug	1/4-40	Non-Illuminated	6.5 mm	On-Off	125 V	Panel Mount
NKK Switches M2021SS1W03-CG	25000 Steps	Brass Chrome Plated	13.1 mm	Standard Round with Cap	30 V	85 °C	-30 ░C	DPST	4 A 6 A	Blue Cap	PC Pin	1/4-40	Non-Illuminated	6.5 mm	On-Off	125 V	Panel Mount
NKK Switches M2021SS1W01-BF	25000 Steps	Brass Chrome Plated		Standard Round with Cap	30 V	85 °C	-30 ░C	DPST	4 A 6 A	Green Cap	Solder Lug	1/4-40	Non-Illuminated	6.5 mm	On-Off	125 V	Panel Mount
NKK Switches M2021SS1W03	25000 Steps	Brass Chrome Plated		Standard Round	30 V	85 °C	-30 ░C	DPST	4 A 6 A	Epoxy Sealed Terminals	PC Pin	1/4-40	Non-Illuminated	6.5 mm	On-Off	125 V	Panel Mount
NKK Switches M2021SS1W01	25000 Steps	Brass Chrome Plated		Standard Round	30 V	85 °C	-30 ░C	DPST	4 A 6 A	Epoxy Sealed Terminals	Solder Lug	1/4-40	Non-Illuminated	6.5 mm	On-Off	125 V	Panel Mount
NKK Switches M2021SS1W02	25000 Steps	Brass Chrome Plated		Standard Round	30 V	85 °C	-30 ░C	DPST	4 A 6 A	Epoxy Sealed Terminals	Quick Connect - 0.062" (1.5mm)	1/4-40	Non-Illuminated	6.5 mm	On-Off	125 V	Panel Mount

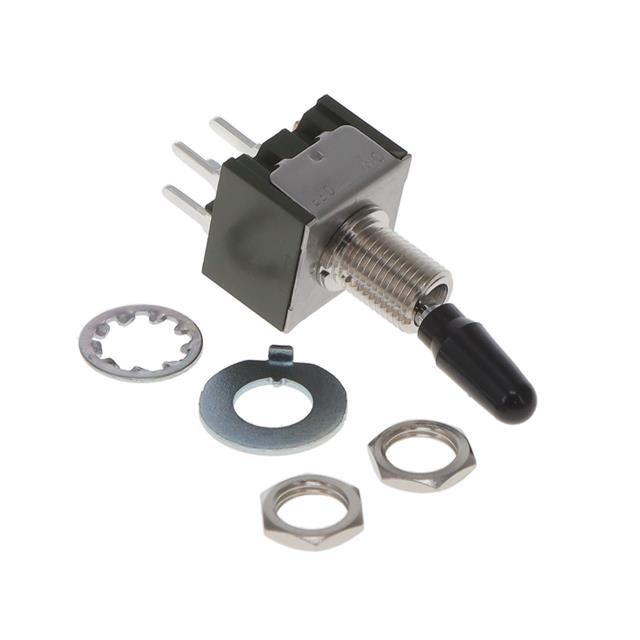

NKK Switches M2021SS1W03-BA	25000 Steps	Brass Chrome Plated	13.5 mm	Standard Round with Cap	30 V	85 °C	-30 ░C	DPST	4 A 6 A	Black Cap	PC Pin	1/4-40	Non-Illuminated	6.5 mm	On-Off	125 V	Panel Mount
