QFR1248 Series

Catalog

DC FAN AXIAL BALL BEARING 48V 33V TO 52.8V 210.38CFM 64DB 120 X 120 X 38MM

Part	Material - Frame	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Approval Agency	Termination	Width [y]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Air Flow	Air Flow	Static Pressure	Static Pressure	Features	Voltage - Rated	Bearing Type	Fan Type	Weight [custom]	Weight [custom]	RPM	Noise

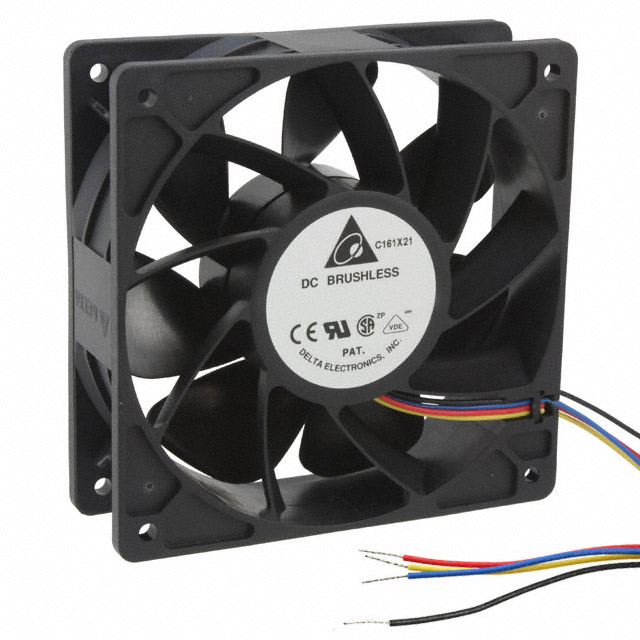

Delta Electronics QFR1248GHE-SP01	Plastic	40 °C 50000 Hrs	Plastic	52.8 VDC	33 VDC	0.5 A	CE CSA UL VDE	4 Wire Leads	38 mm	24 W	-10 °C	60 °C	120 mm	120 mm	5.89 m³/min	210.4 CFM	1.17 in H2O	291.4 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)	48 VDC	Ball	Tubeaxial	0.728 lb	330.22 g	6000 RPM	64 dB(A)
Delta Electronics QFR1248GHE	Plastic	40 °C 50000 Hrs	Plastic	52.8 VDC	33 VDC	0.5 A	CE CSA UL VDE	2 Wire Leads	38 mm	24 W	-10 °C	60 °C	120 mm	120 mm	5.89 m³/min	210.4 CFM	1.17 in H2O	291.4 Pa		48 VDC	Ball	Tubeaxial	0.728 lb	330.22 g	6000 RPM	64 dB(A)
