KX15-80K Series

Catalog

CONN PLUG 80POS SMD GOLD

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Contact Finish	Number of Positions	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Features	Mounting Type	Pitch	Pitch
JAE Electronics KX15-80K4D-E1000E	4 in 4 Áin	0.1 m 0.1 Ám	2	Gold	80	6 mm 9 mm 12 mm 15 mm 18 mm	5.74 mm	0.226 "	Board Guide Solder Retention	Surface Mount	0.8 mm	0.031 in

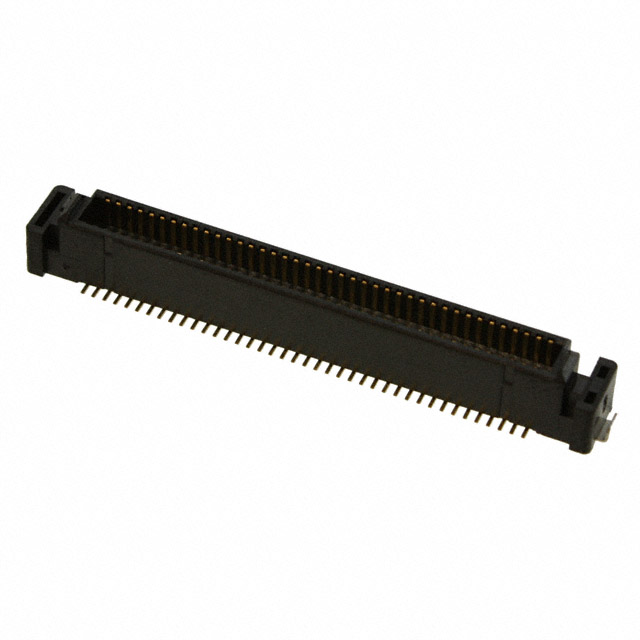

JAE Electronics KX15-80K4DE	4 Áin	0.1 Ám	2	Gold	80	6 mm 9 mm 12 mm 15 mm 18 mm	5.74 mm	0.226 "	Board Guide Solder Retention	Surface Mount	0.8 mm	0.031 in
JAE Electronics KX15-80K2DE	4 Áin	0.1 Ám	2	Gold	80	4 mm 7 mm 10 mm 13 mm 16 mm	3.75 mm	0.148 in	Board Guide Solder Retention	Surface Mount	0.8 mm	0.031 in
JAE Electronics KX15-80K3D-E1000E	4 Áin	0.1 Ám	2	Gold	80	5 mm 8 mm 11 mm 14 mm 17 mm	4.75 mm	0.187 in	Board Guide Solder Retention	Surface Mount	0.8 mm	0.031 in
JAE Electronics KX15-80KLNL-C60			2		80						0.8 mm	0.031 in
JAE Electronics KX15-80KLDL-E1000E	4 Áin	0.1 Ám	2	Gold	80		5.74 mm	0.226 "	Board Guide Solder Retention	Right Angle Surface Mount	0.8 mm	0.031 in
JAE Electronics KX15-80KLDL-VI-E1000E	4 Áin	0.1 Ám	2	Gold	80				Board Guide Solder Retention	Right Angle Surface Mount	0.8 mm	0.031 in

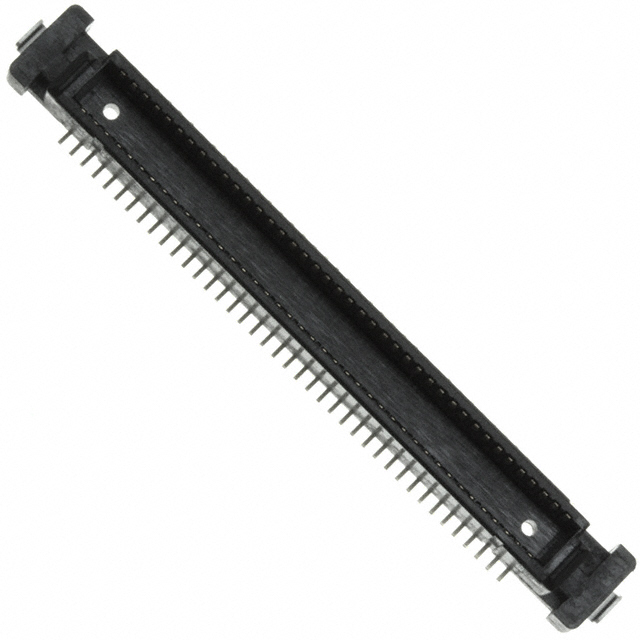

JAE Electronics KX15-80K3DE	4 Áin	0.1 Ám	2	Gold	80	5 mm 8 mm 11 mm 14 mm 17 mm	4.75 mm	0.187 in	Board Guide Solder Retention	Surface Mount	0.8 mm	0.031 in
JAE Electronics KX15-80KLDL-VIE	4 Áin	0.1 Ám	2	Gold	80				Board Guide Solder Retention	Right Angle Surface Mount	0.8 mm	0.031 in

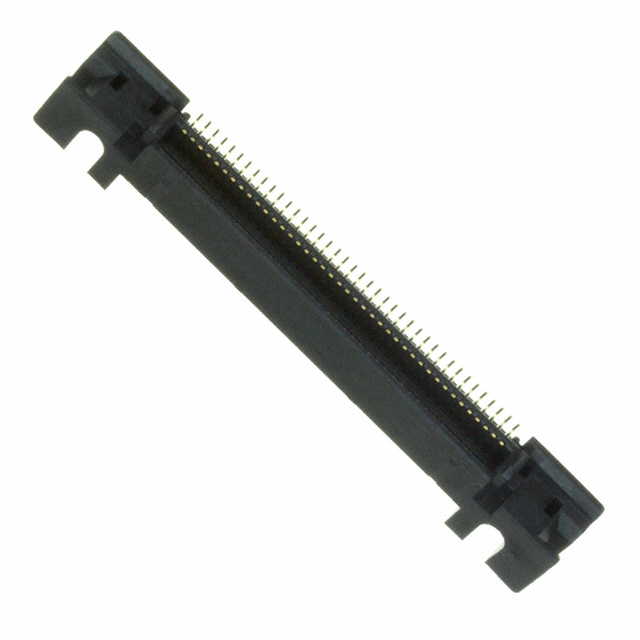

JAE Electronics KX15-80KLNL	4 Áin	0.1 Ám	2	Gold	80		5.74 mm	0.226 "	Board Guide	Right Angle Surface Mount	0.8 mm	0.031 in
