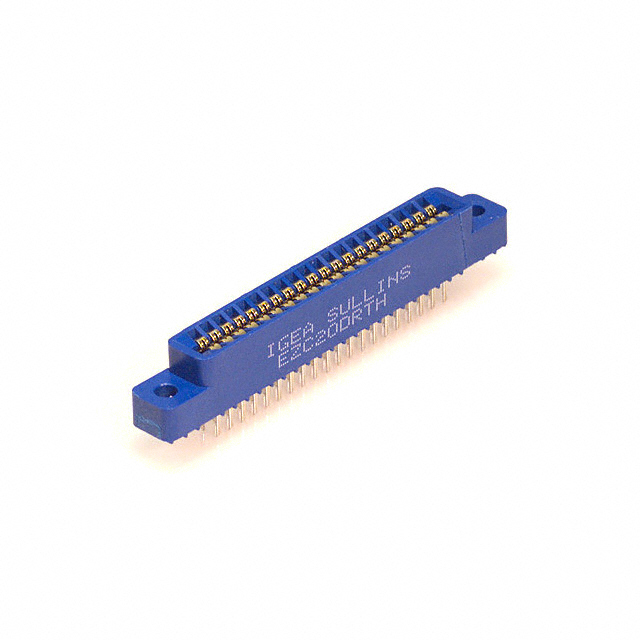

EZC20 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 40POS 0.100
| Part | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Termination | Contact Material | Read Out | Color | Mounting Type | Contact Finish | Contact Type | Number of Rows | Pitch [x] | Pitch [x] | Number of Positions | Card Type | Gender | Card Thickness | Card Thickness | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 10 Áin | 0.25 Ám | Polybutylene Terephthalate (PBT) | Solder | Phosphor Bronze | Dual | Blue | Through Hole | Gold | Full Bellows | 2 | 2.54 mm | 0.1 in | 40 | Non Specified - Dual Edge | Female | 0.062 in | 1.57 mm | 20 | 20 | 20 | 125 °C | -65 ░C | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded |
