COMP Series
Manufacturer: RF Industries
Beta
⌘K

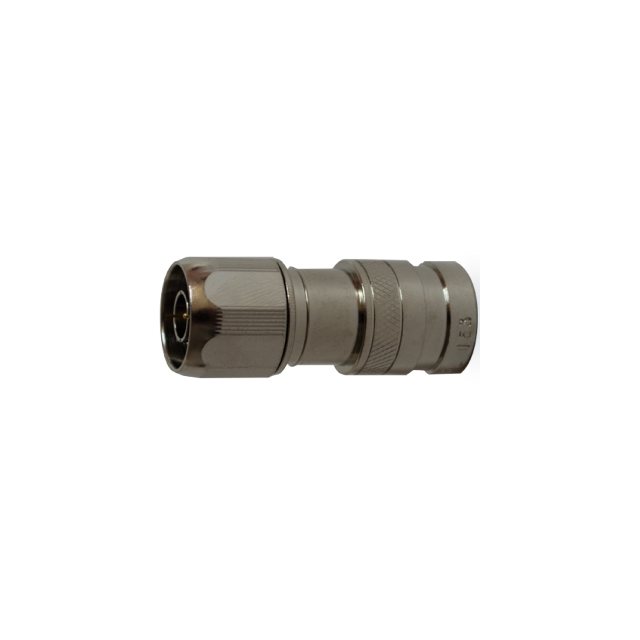

N MALE COMPRESSION; 50 OHMS
| Part | Body Material | Body Finish | Dielectric Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Shield Termination | Connector Style | Impedance | Fastening Type | Center Contact Material | Cable Group | Ingress Protection | Number of Ports | Mounting Type | Housing Color | Connector Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Brass | White Bronze | Polyetherimide (PEI) | Gold | -55 C | 85 °C | Compression | N Type | 50 Ohms | Threaded | Brass | LMR-400 Plenum | IP68 - Dust Tight Waterproof | 1 | Free Hanging (In-Line) | Silver | Plug Male Pin | 7 GHz |
 RF Industries | Brass | White Bronze | Polyetherimide (PEI) | Gold | -55 C | 85 °C | Compression | N Type | 50 Ohms | Threaded | Brass | LMR-400 | IP68 - Dust Tight Waterproof | 1 | Free Hanging (In-Line) | Silver | Plug Male Pin | 7 GHz |
