3136-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

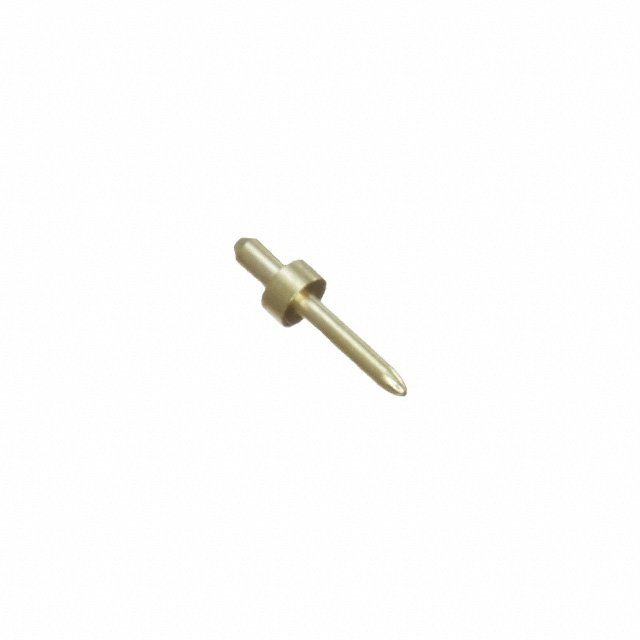

CONN PC PIN CIRC .030DIA GOLD
| Part | Insulation | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Length - Above Flange | Length - Above Flange [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Type | Terminal Style | Termination | Length - Overall [x] | Length - Overall [x] | Contact Material | Board Thickness | Board Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | Gold | 20 µin | 0.51 µm | Through Hole | 0.18 " | 4.57 mm | 0.04 in | 1.02 mm | 2.08 mm | 0.082 in | 0.03 in | 0.76 mm | 0.078 " | 1.98 mm | 0.043 in | 1.09 mm | PC Pin | Double End | Solder | 0.302 " | 7.67 mm | Brass Alloy | 1.57 mm | 0.062 " |
 Mill-Max Manufacturing Corp. | Non-Insulated | Gold | 50 µin | 1.27 µm | Through Hole | 0.18 " | 4.57 mm | 0.04 in | 1.02 mm | 2.08 mm | 0.082 in | 0.03 in | 0.76 mm | 0.078 " | 1.98 mm | 0.043 in | 1.09 mm | PC Pin | Double End | Solder | 0.302 " | 7.67 mm | Brass Alloy | 1.57 mm | 0.062 " |
