B5020 Series

Catalog

FAN BLOWER 51X20MM 12VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Static Pressure	Static Pressure	Bearing Type	Fan Type	Termination	Voltage - Rated	Weight [custom]	Weight [custom]	RPM	Width [y]	Features	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Noise	Air Flow	Air Flow

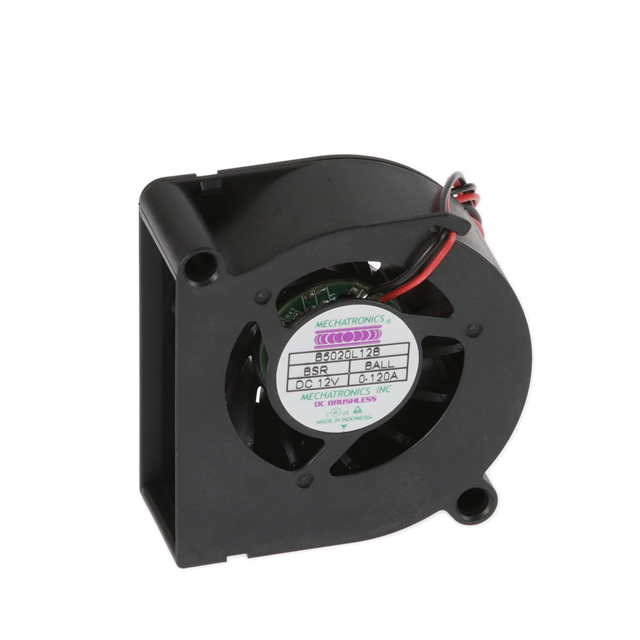

Mechatronics Fan Group B5020L12B-BSR	Polybutylene Terephthalate (PBT)	120 mA	0.2 in H2O	49.8 Pa	Ball	Blower	2 Wire Leads	12 VDC	0.049 lb	22.23 g	4000 RPM	20 mm	Thermal Overload Protector (TOP)	Square/Rounded	51 mm	50 mm	29 dB(A)	6 CFM	0.168 mł/min

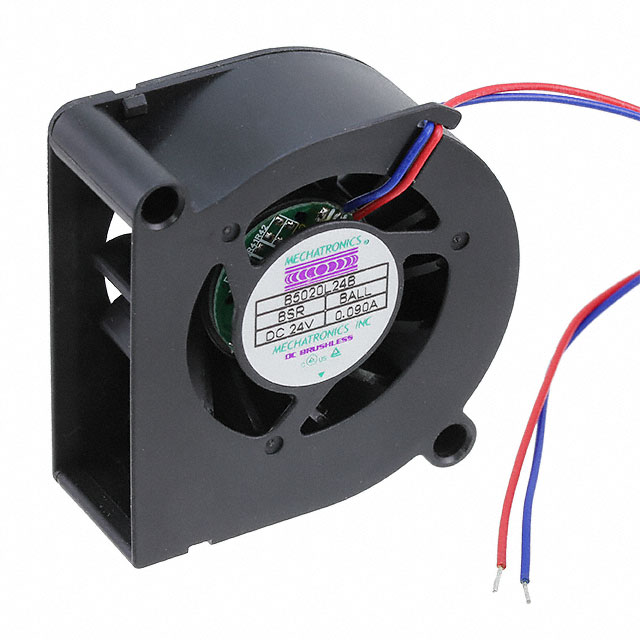

Mechatronics Fan Group B5020L24B-BSR	Polybutylene Terephthalate (PBT)	0.09 A	0.2 in H2O	49.8 Pa	Ball	Blower	2 Wire Leads	24 VDC	0.049 lb	22.23 g	4000 RPM	20 mm	Thermal Overload Protector (TOP)	Square/Rounded	51 mm	50 mm	29 dB(A)	6 CFM	0.168 mł/min
Mechatronics Fan Group B5020L24F-BSR	Polybutylene Terephthalate (PBT)	0.09 A	0.2 in H2O	49.8 Pa	Ball	Blower	2 Wire Leads	24 VDC	0.049 lb	22.23 g	4000 RPM	20 mm	Thermal Overload Protector (TOP)	Square/Rounded	51 mm	50 mm	29 dB(A)	6 CFM	0.168 mł/min

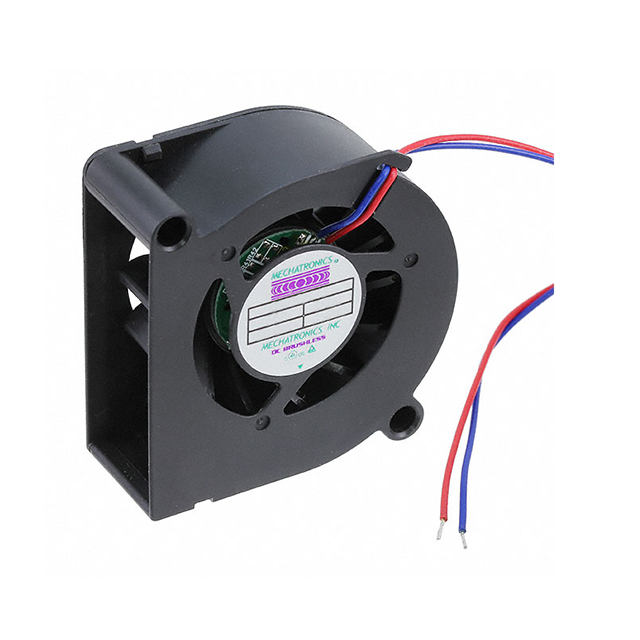

Mechatronics Fan Group B5020L12B-BSR-CC	Polybutylene Terephthalate (PBT)	120 mA	0.2 in H2O	49.8 Pa	Ball	Blower	2 Wire Leads	12 VDC	0.049 lb	22.23 g	4000 RPM	20 mm	Conformal Coating Thermal Overload Protector (TOP)	Square/Rounded	51 mm	50 mm	29 dB(A)	6 CFM	0.168 mł/min
