851-83 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN SOCKET 12POS 0.05 GOLD PCB

...

Part	Insulation Material	Contact Material	Contact Shape	Insulation Color	Number of Positions Loaded	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Mating	Connector Type	Number of Rows	Contact Length - Post [x]	Contact Length - Post	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Type	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material Flammability Rating	Mounting Type	Contact Finish - Post	Fastening Type	Contact Length - Post	Insulation Height	Insulation Height	Features

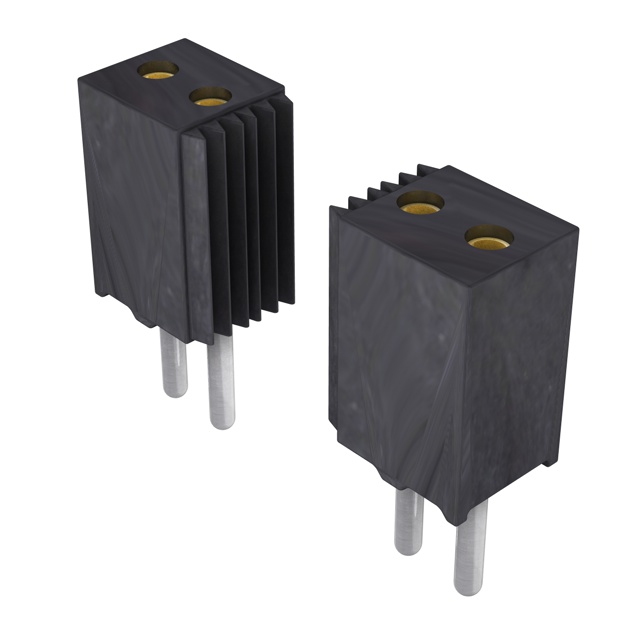

Preci-Dip 851-83-012-10-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Black	All	29.5 µin	0.75 µm	Gold	Socket	1	0.091 "	2.3 mm	1.27 mm	0.05 in	12	Female Socket	4.1 mm	0.161 in	-55 C	125 °C	Solder	UL94 V-0	Through Hole	Tin	Push-Pull

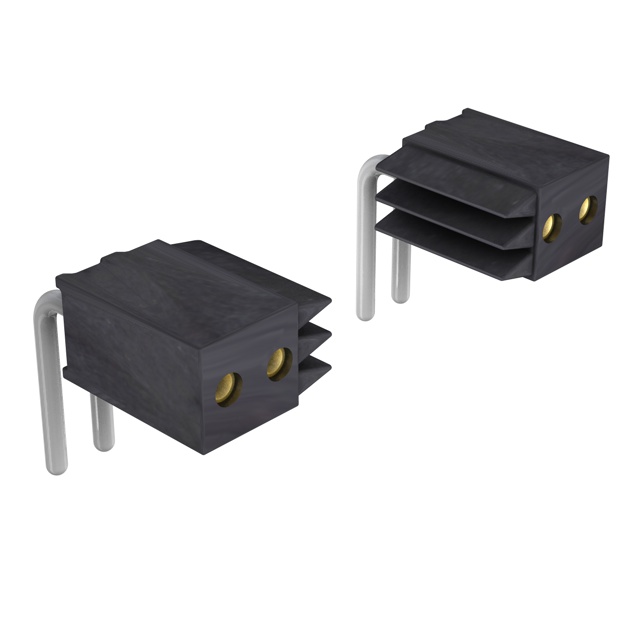

Preci-Dip 851-83-006-20-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Black	All	29.5 µin	0.75 µm	Gold	Socket	1		3 mm	1.27 mm	0.05 in	6	Female Socket			-55 C	125 °C	Solder	UL94 V-0	Right Angle Through Hole	Tin	Push-Pull	0.118 in	0.087 "	2.2 mm
Preci-Dip 851-83-006-40-252191	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Black	All	29.5 µin	0.75 µm	Gold	Socket	1			1.27 mm	0.05 in	6	Female Socket			-55 C	125 °C	Solder	UL94 V-0	Right Angle Surface Mount	Tin	Push-Pull		0.087 "	2.2 mm

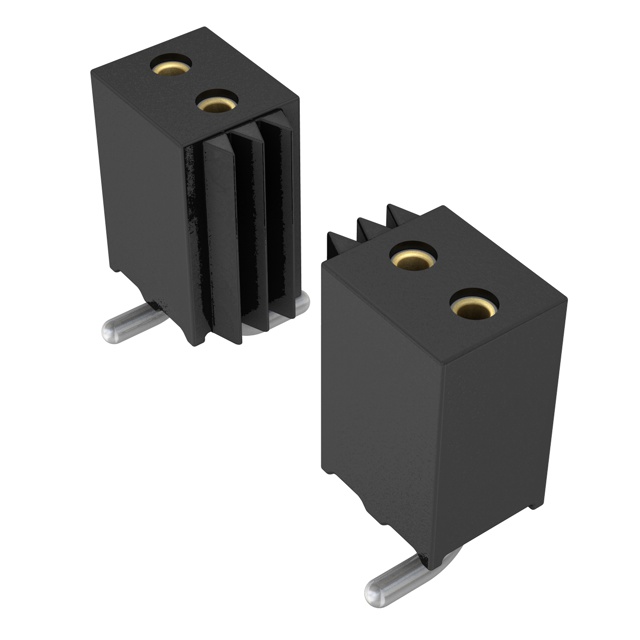

Preci-Dip 851-83-007-30-136101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Black	All	29.5 µin	0.75 µm	Gold	Socket	1			1.27 mm	0.05 in	7	Female Socket			-55 C	125 °C	Solder	UL94 V-0	Surface Mount	Tin	Push-Pull		0.203 in	5.16 mm	Board Guide
Preci-Dip 851-83-036-30-136101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Black	All	29.5 µin	0.75 µm	Gold	Socket	1			1.27 mm	0.05 in	36	Female Socket			-55 C	125 °C	Solder	UL94 V-0	Surface Mount	Tin	Push-Pull		0.203 in	5.16 mm	Board Guide
Preci-Dip 851-83-018-20-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Black	All	29.5 µin	0.75 µm	Gold	Socket	1		3 mm	1.27 mm	0.05 in	18	Female Socket			-55 C	125 °C	Solder	UL94 V-0	Right Angle Through Hole	Tin	Push-Pull	0.118 in	0.087 "	2.2 mm

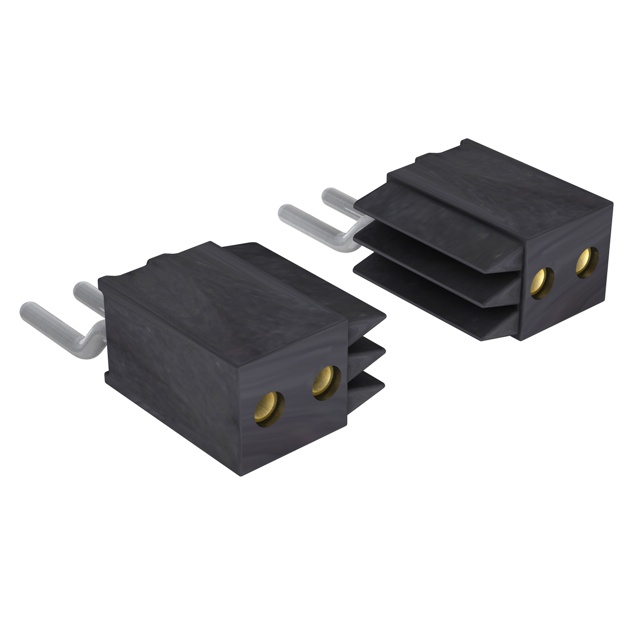

Preci-Dip 851-83-036-40-252101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Black	All	29.5 µin	0.75 µm	Gold	Socket	1			1.27 mm	0.05 in	36	Female Socket			-55 C	125 °C	Solder	UL94 V-0	Right Angle Surface Mount	Tin	Push-Pull		0.087 "	2.2 mm
Preci-Dip 851-83-024-10-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Black	All	29.5 µin	0.75 µm	Gold	Socket	1	0.091 "	2.3 mm	1.27 mm	0.05 in	24	Female Socket	4.1 mm	0.161 in	-55 C	125 °C	Solder	UL94 V-0	Through Hole	Tin	Push-Pull
Preci-Dip 851-83-019-30-136101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Black	All	29.5 µin	0.75 µm	Gold	Socket	1			1.27 mm	0.05 in	19	Female Socket			-55 C	125 °C	Solder	UL94 V-0	Surface Mount	Tin	Push-Pull		0.203 in	5.16 mm	Board Guide
Preci-Dip 851-83-037-30-136101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	Black	All	29.5 µin	0.75 µm	Gold	Socket	1			1.27 mm	0.05 in	37	Female Socket			-55 C	125 °C	Solder	UL94 V-0	Surface Mount	Tin	Push-Pull		0.203 in	5.16 mm	Board Guide
