SH06 Series

Catalog

PCBPLUG 10MMPS 6P 12A 300V GRN

Part	Voltage - IEC	Termination Style	Voltage - UL	Features	Type	Positions Per Level	Mounting Type	Contact Mating Finish	Number of Levels	Operating Temperature	Current - UL	Wire Gauge or Range - mm²	Pitch	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Current - IEC	Number of Positions	Plug Wire Entry Angle	Color	Material Flammability Rating	Housing Material	Screw Size	Torque - Screw	Wire Strip Length	Contact Material	Insulation Height	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)
Altech Corporation SH06-10,00	750 V	Screw - Rising Cage Clamp	300 V	Retention Latches (Non-Wire Side)	Female Sockets Plug	6	Free Hanging (In-Line)	Nickel	1	105 °C	12 A	4 mm²	0.394 in	30 AWG	14 AWG	16 A	6	180 °	Green
Altech Corporation SH06-5,00/IA	450 V	Screw - Rising Cage Clamp	300 V	Retention Latches (Non-Wire Side)	Female Sockets Plug	6	Free Hanging (In-Line)	Nickel	1	105 °C	12 A	4 mm²	0.197 in	30 AWG	14 AWG	16 A	6	180 °	Green
Altech Corporation SH06-5,08-K	450 V	Screw - Rising Cage Clamp	300 V		Male Pins Plug	6	Free Hanging (In-Line)	Nickel	1	105 °C	12 A	2.5 mm²	5.08 mm	30 AWG	14 AWG	16 A	6	180 °	Green
Altech Corporation SH06-3,81	130 V	Screw - Rising Cage Clamp	300 V		Female Sockets Plug	6	Free Hanging (In-Line)	Tin	1	105 °C	8 A	1.5 mm²	0.15 in	30 AWG	16 AWG	8 A	6	180 °	Green

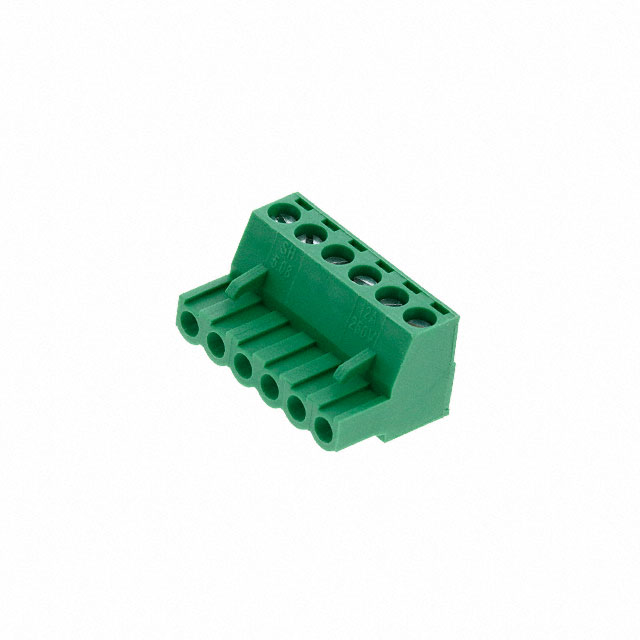

Altech Corporation SH06-5,08	450 V	Screw - Rising Cage Clamp	300 V	Retention Latches (Non-Wire Side)	Female Sockets Plug	6	Free Hanging (In-Line)	Nickel	1		12 A	2.5 mm²	5.08 mm	30 AWG	14 AWG	16 A	6	180 °	Green	UL94 V-0	Nylon PA Polyamide	M3	0.5 Nm	7.5 mm	Brass	0.61 in
Altech Corporation SH06-10,16-K
Altech Corporation SH06-3,50-K	160 V	Screw	300 V		Female Sockets Plug	6	Free Hanging (In-Line)	Nickel	1		11 A		0.138 in	30 AWG	14 AWG	8 A	6	180 °	Green								1.5 mm²	0.25 mm²	-30 °C	105 °C

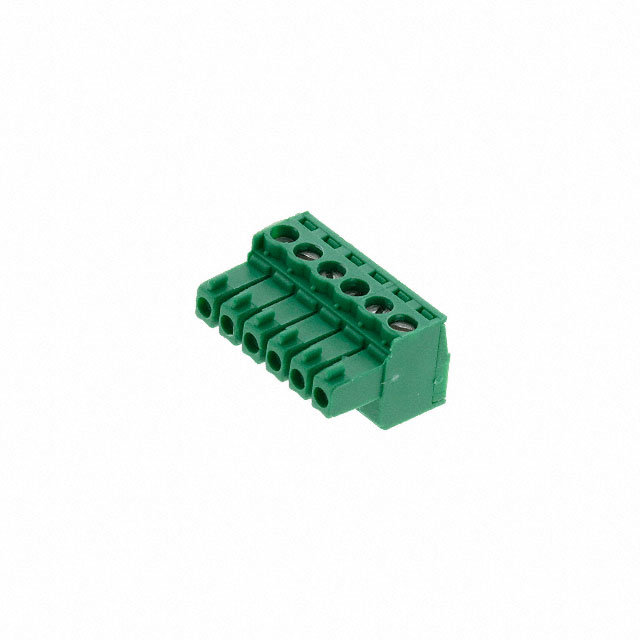

Altech Corporation SH06-3,50	160 V	Screw - Rising Cage Clamp	300 V		Female Sockets Plug	6	Free Hanging (In-Line)	Nickel	1		11 A		0.138 in	30 AWG	14 AWG	8 A	6	180 °	Green	UL94 V-0	Nylon PA Polyamide	M2	0.25 Nm	8 mm	Copper Alloy		1.5 mm²	0.25 mm²	-30 °C	105 °C

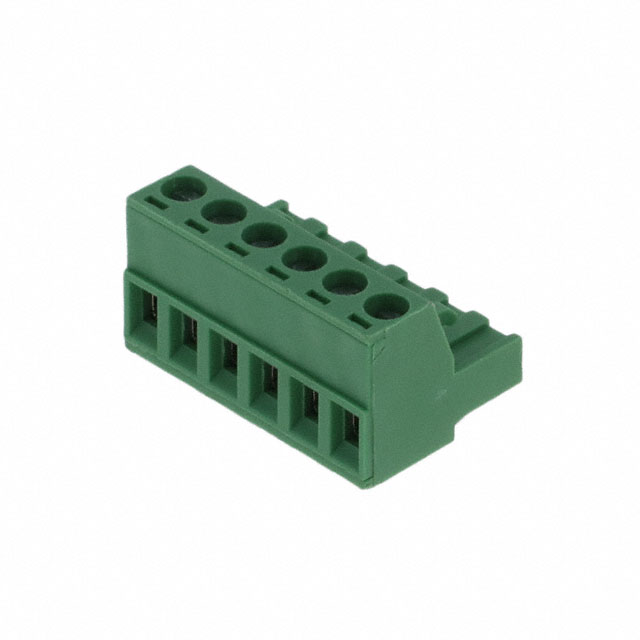

Altech Corporation SH06-5,00	450 V	Screw - Rising Cage Clamp	300 V	Retention Latches (Non-Wire Side)	Female Sockets Plug	6	Free Hanging (In-Line)	Nickel	1		12 A	2.5 mm²	0.197 in	30 AWG	14 AWG	16 A	6	180 °	Green	UL94 V-0	Nylon PA Polyamide	M3	0.5 Nm	7.5 mm	Brass	0.61 in
Altech Corporation SH06-7,50	750 V	Screw - Rising Cage Clamp	300 V	Retention Latches (Non-Wire Side)	Female Sockets Plug	6	Free Hanging (In-Line)	Nickel	1	105 °C	12 A	4 mm²	0.295 in	30 AWG	14 AWG	16 A	6	180 °	Green
