LDH-25 Series

Catalog

LED DRIVER CC BST 12.5-72V 350MA

Part	Number of Outputs	Voltage - Output [Min]	Voltage - Output [Max]	Topology	Power (Watts)	Voltage - Input (Max) [Max]	Mounting Type	Package / Case	Features	Dimming	Approval Agency	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Termination Style
MEAN WELL USA Inc. LDH-25-350	1	12.5 V	72 V	Boost	25 W	32 V	Through Hole	6-DIP Module	OVP SCP	Analog PWM	CE EAC	9.5 V	1.07 in	0.94 "	2.06 "	27.2 mm	52.4 mm	24 mm	350 mA	Constant Current	70 °C	-40 C	95 %

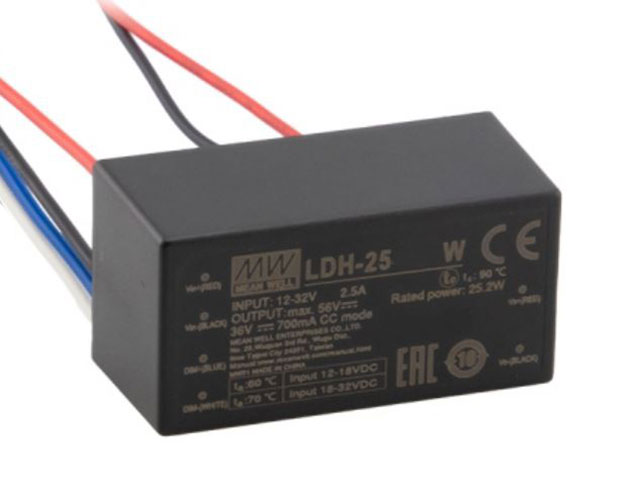

MEAN WELL USA Inc. LDH-25-700W	1	12.5 V	36 V	Boost	25 W	32 V	Chassis Mount		OVP SCP	Analog PWM	CE EAC	9.5 V	1.07 in	0.94 "	2.06 "	27.2 mm	52.4 mm	24 mm	700 mA	Constant Current	70 °C	-40 C	95.5 %	Wire Leads
MEAN WELL USA Inc. LDH-25-500	1	12.5 V	50 V	Boost	25 W	32 V	Through Hole	6-DIP Module	OVP SCP	Analog PWM	CE EAC	9.5 V	1.07 in	0.94 "	2.06 "	27.2 mm	52.4 mm	24 mm	500 mA	Constant Current	70 °C	-40 C	94 %

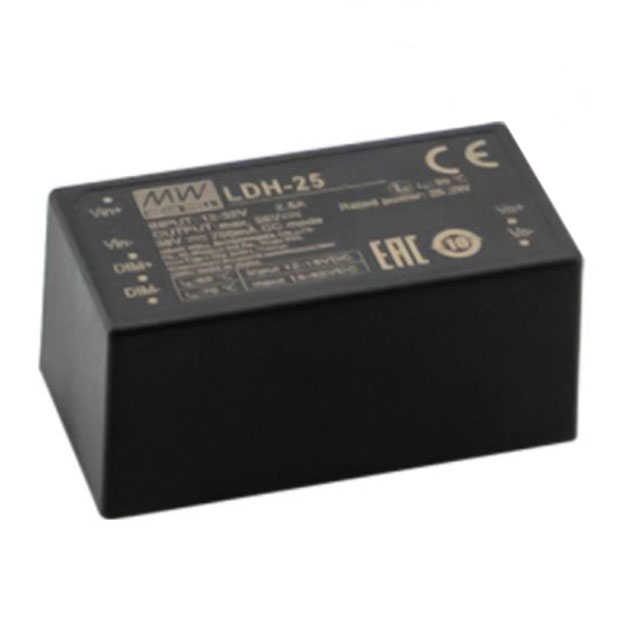

MEAN WELL USA Inc. LDH-25-700	1	12.5 V	36 V	Boost	25 W	32 V	Through Hole	6-DIP Module	OVP SCP	Analog PWM	CE EAC	9.5 V	1.07 in	0.94 "	2.06 "	27.2 mm	52.4 mm	24 mm	700 mA	Constant Current	70 °C	-40 C	95.5 %
