KA4558 Series

Catalog

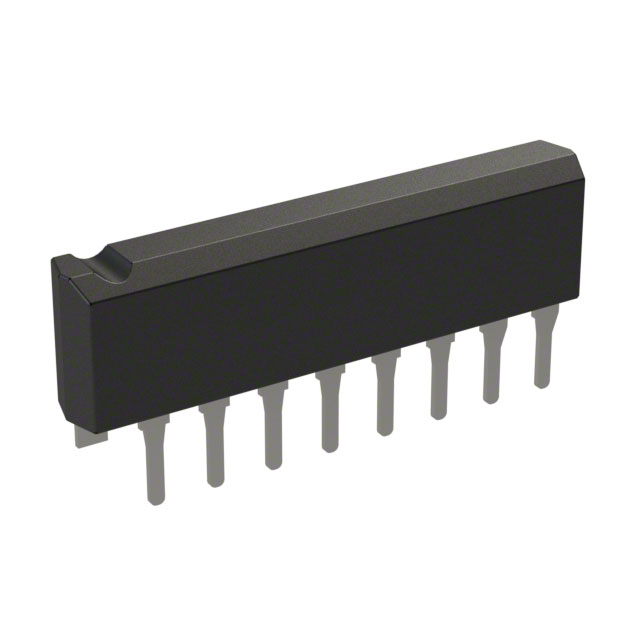

IC OPAMP GP 2 CIRCUIT 9SIP

Part	Package / Case	Amplifier Type	Mounting Type	Current - Supply	Number of Circuits	Voltage - Input Offset	Voltage - Supply Span (Min) [Min]	Slew Rate	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply Span (Max) [Max]	Current - Input Bias	Supplier Device Package	Package / Case [y]	Package / Case [x]	Package / Case	Package / Case
ON Semiconductor KA4558S	10-SSIP Module 9 Leads Formed Leads	General Purpose	Through Hole	3.5 mA	2	2 mV	44 V	1.2 V/µs	70 °C	0 °C	44 V	30 nA	9-SIP
ON Semiconductor KA4558D	8-SOIC	General Purpose	Surface Mount	3.5 mA	2	2 mV	44 V	1.2 V/µs	70 °C	0 °C	44 V	30 nA	8-SOIC	3.9 mm	0.154 in
ON Semiconductor KA4558STU	10-SSIP Module 9 Leads Formed Leads	General Purpose	Through Hole	3.5 mA	2	2 mV	44 V	1.2 V/µs	70 °C	0 °C	44 V	30 nA	9-SIP
ON Semiconductor KA4558I	8-DIP	General Purpose	Through Hole	3.5 mA	2	3 mV	44 V	1.2 V/µs	85 °C	-40 °C	44 V	30 nA	8-DIP			0.3 in	7.62 mm
