GLAB0 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 6A 120V
| Part | Termination Style | Mounting Type | Actuator Type | Voltage Rating - AC | Circuit | Operating Position | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Operating Force | Overtravel | Voltage Rating - DC | Current Rating (Amps) | Differential Travel | Pretravel | Mechanical Life | Overtravel | Pretravel | Operating Position [custom] | Operating Position [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | Screw Terminal | Chassis Mount | Roller Side Rotary | 120 V | SPDT | 26 ° | On-Mom | -25 °C | 85 °C | IP67 - Dust Tight Waterproof | 33 gfm | 59 ° | 125 VDC | 6 A 550 mA | 12 ° | 26 ° | 15000000 Cycles | ||||

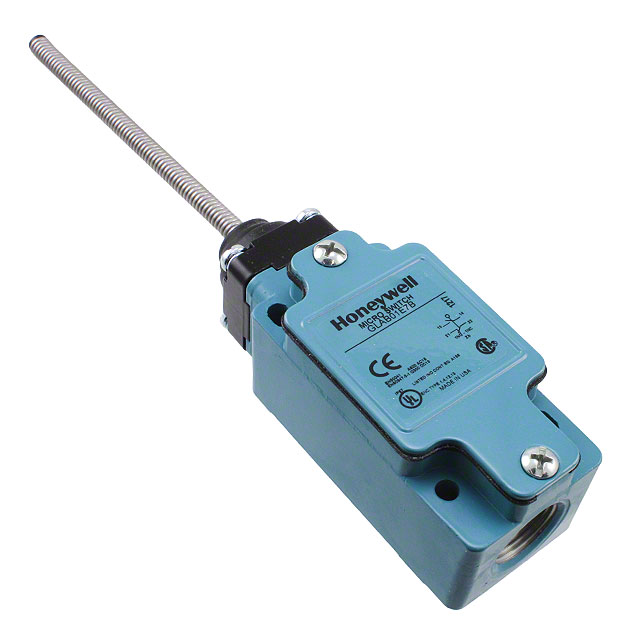

 Honeywell Sensing and Productivity Solutions | Screw Terminal | Chassis Mount | Coil Spring | 120 V | SPDT | 18 ° | On-Mom | -25 °C | 85 °C | IP66 | 10 gfm | 125 VDC | 6 A 550 mA | 18 ° | 15000000 Cycles | ||||||

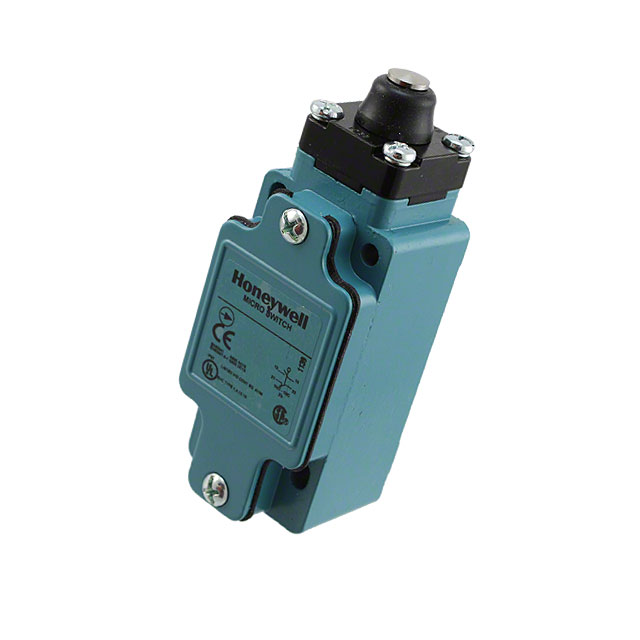

 Honeywell Sensing and Productivity Solutions | Screw Terminal | Chassis Mount | Round (Pin Plunger) | 120 V | SPDT | On-Mom | -25 °C | 85 °C | IP67 - Dust Tight Waterproof | 1632 gf | 0.18 in | 125 VDC | 6 A 550 mA | 0.1 in | 15000000 Cycles | 4.6 mm | 2.5 mm | 35 mm | 1.38 in |
