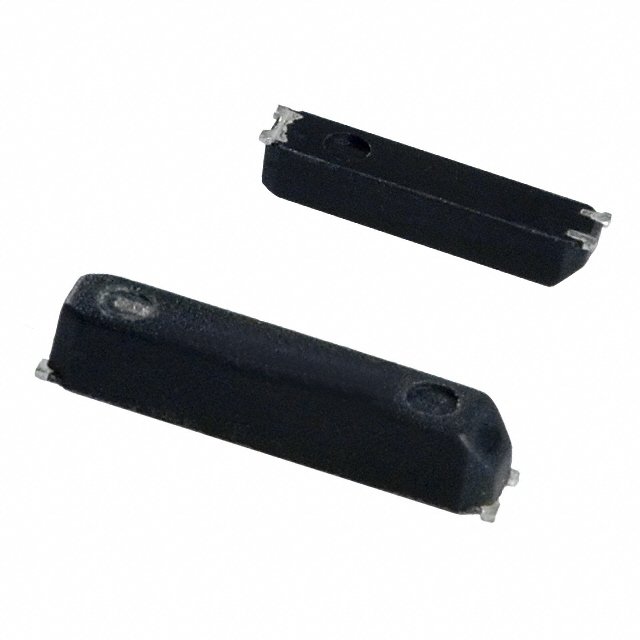

MC-146 Series

Manufacturer: EPSON

Catalog

MC-146 32.7680KD-AG0: ROHS MINI

Part	Package / Case	Type	Operating Mode	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency	Mounting Type	Frequency Tolerance	ESR (Equivalent Series Resistance)	Load Capacitance	Operating Temperature [Max]	Operating Temperature [Min]
EPSON MC-146 32.7680KD-AG0 ROHS	4-SMD Flat Leads	kHz Crystal (Tuning Fork)	Fundamental	6.7 mm	1.5 mm	0.264 in	0.059 in	1.5	4-SMD	6.7	0.055 in	1.4 mm	0.032768 MHz	Surface Mount	30 ppm	65 kOhms	7 pF	85 °C	-40 C
EPSON MC-146 32.7680KA-AC6 ROHS	4-SMD Flat Leads	kHz Crystal (Tuning Fork)	Fundamental	6.7 mm	1.5 mm	0.264 in	0.059 in	1.5	4-SMD	6.7	0.055 in	1.4 mm	0.032768 MHz	Surface Mount	20 ppm	65 kOhms	9 pF	85 °C	-40 C
EPSON MC-146 32.7680KA-EX ROHS	4-SMD Flat Leads	kHz Crystal (Tuning Fork)	Fundamental	6.7 mm	1.5 mm	0.264 in	0.059 in	1.5	4-SMD	6.7	0.055 in	1.4 mm	0.032768 MHz	Surface Mount	20 ppm	65 kOhms	6 pF	85 °C	-40 C
EPSON MC-146 32.7680KD-A6 ROHS	4-SMD Flat Leads	kHz Crystal (Tuning Fork)	Fundamental	6.7 mm	1.5 mm	0.264 in	0.059 in	1.5	4-SMD	6.7	0.055 in	1.4 mm	0.032768 MHz	Surface Mount	30 ppm	65 kOhms	12.5 pF	85 °C	-40 C
EPSON MC-146 32.7680KD-A5 ROHS	4-SMD Flat Leads	kHz Crystal (Tuning Fork)	Fundamental	6.7 mm	1.5 mm	0.264 in	0.059 in	1.5	4-SMD	6.7	0.055 in	1.4 mm	0.032768 MHz	Surface Mount	30 ppm	65 kOhms	12.5 pF	85 °C	-40 C
EPSON MC-146 32.7680KA-AX PURE SN	4-SMD Flat Leads	kHz Crystal (Tuning Fork)	Fundamental	6.7 mm	1.5 mm	0.264 in	0.059 in	1.5	4-SMD	6.7	0.055 in	1.4 mm	0.032768 MHz	Surface Mount	20 ppm	65 kOhms	12.5 pF	85 °C	-40 C
EPSON MC-146 32.7680KA-AX ROHS	4-SMD Flat Leads	kHz Crystal (Tuning Fork)	Fundamental	6.7 mm	1.5 mm	0.264 in	0.059 in	1.5	4-SMD	6.7	0.055 in	1.4 mm	0.032768 MHz	Surface Mount	20 ppm	65 kOhms	12.5 pF	85 °C	-40 C
EPSON MC-146 32.7680KD-AG5 ROHS	4-SMD Flat Leads	kHz Crystal (Tuning Fork)	Fundamental	6.7 mm	1.5 mm	0.264 in	0.059 in	1.5	4-SMD	6.7	0.055 in	1.4 mm	0.032768 MHz	Surface Mount	30 ppm	65 kOhms	7 pF	85 °C	-40 C
EPSON MC-146 32.7680KA-W: ROHS	4-SMD Flat Leads	kHz Crystal (Tuning Fork)	Fundamental	6.7 mm	1.5 mm	0.264 in	0.059 in	1.5	4-SMD	6.7	0.055 in	1.4 mm	0.032768 MHz	Surface Mount	20 ppm	65 kOhms	12 pF	85 °C	-40 C
