UHE-5 Series

Catalog

DC DC CONVERTER 5V 30W

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Applications	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Isolation	Mounting Type	Features	Type	Efficiency	Control Features	Package / Case
Murata Electronics UHE-5/6000-D48-C	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	75 V	36 V	1	ITE (Commercial)	30 Watts	85 °C	-40 C	5 V	6 A	1.5 kV	Through Hole	OCP OTP Remote On/Off SCP UVLO	Isolated Module	89 %	Active High Enable	9-DIP Module 6 Leads

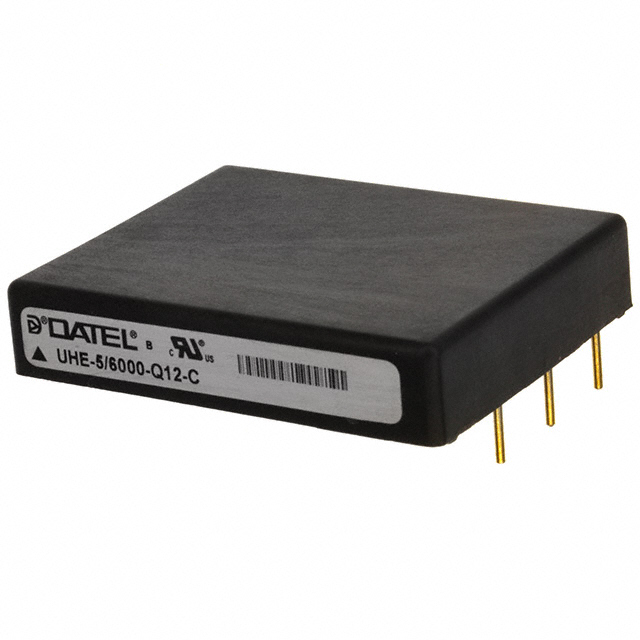

Murata Electronics UHE-5/6000-Q12-C	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	36 V	9 V	1	ITE (Commercial)	30 Watts	85 °C	-40 C	5 V	6 A	1.5 kV	Through Hole	OCP OTP Remote On/Off SCP UVLO	Isolated Module	87 %	Active High Enable	9-DIP Module 8 Leads
