CMSH3 Series

Manufacturer: Central Semiconductor Corp

Catalog

DIODE SCHOTTKY 150V 3A SMAFLAT

Part	Package / Case	Capacitance @ Vr, F	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Technology	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If

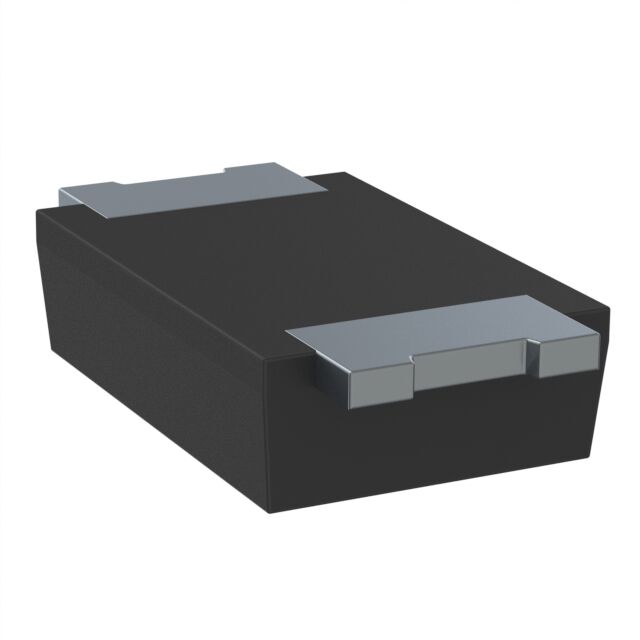

Central Semiconductor Corp CMSH3-150MFL TR13 PBFREE	DO-221AC SMA Flat Leads	90 pF	SMAflat	150 °C	-65 C	200 mA 500 ns	Schottky	50 µA	3 A	Surface Mount	0.9 V
Central Semiconductor Corp CMSH3-60M TR13 PBFREE	DO-214AA SMB	280 pF	SMB	150 °C	-65 C	200 mA 500 ns	Schottky	500 µA	3 A	Surface Mount	750 mV	60 V
Central Semiconductor Corp CMSH3-100MFL TR13 PBFREE	DO-221AC SMA Flat Leads	110 pF	SMAflat	150 °C	-65 C	200 mA 500 ns	Schottky	50 µA	3 A	Surface Mount	800 mV	100 V
Central Semiconductor Corp CMSH3-60M BK PBFREE	DO-214AA SMB	121 pF	SMB	150 °C	-65 C	200 mA 500 ns	Schottky	500 µA	3 A	Surface Mount		60 V	700 mV
Central Semiconductor Corp CMSH3-20 TR13 PBFREE	DO-214AB SMC		SMC	150 °C	-65 C	200 mA 500 ns	Schottky	500 µA	3 A	Surface Mount		20 V	500 mV
Central Semiconductor Corp CMSH3-20M TR13 PBFREE	DO-214AA SMB	280 pF	SMB	150 °C	-65 C	200 mA 500 ns	Schottky	500 µA	3 A	Surface Mount		20 V	550 mV
Central Semiconductor Corp CMSH3-60 TR13 PBFREE	DO-214AB SMC		SMC	150 °C	-65 C	200 mA 500 ns	Schottky	500 µA	3 A	Surface Mount		60 V	700 mV
Central Semiconductor Corp CMSH3-100 TR13 PBFREE	DO-214AB SMC		SMC	150 °C	-65 C	200 mA 500 ns	Schottky	500 µA	3 A	Surface Mount		100 V	800 mV
Central Semiconductor Corp CMSH3-40MA TR13 PBFREE	DO-214AC SMA	280 pF	SMA	150 °C	-65 C	200 mA 500 ns	Schottky	500 µA	3 A	Surface Mount		40 V	500 mV
Central Semiconductor Corp CMSH3-40 TR13 PBFREE	DO-214AB SMC		SMC	150 °C	-65 C	200 mA 500 ns	Schottky	500 µA	3 A	Surface Mount		40 V	500 mV
