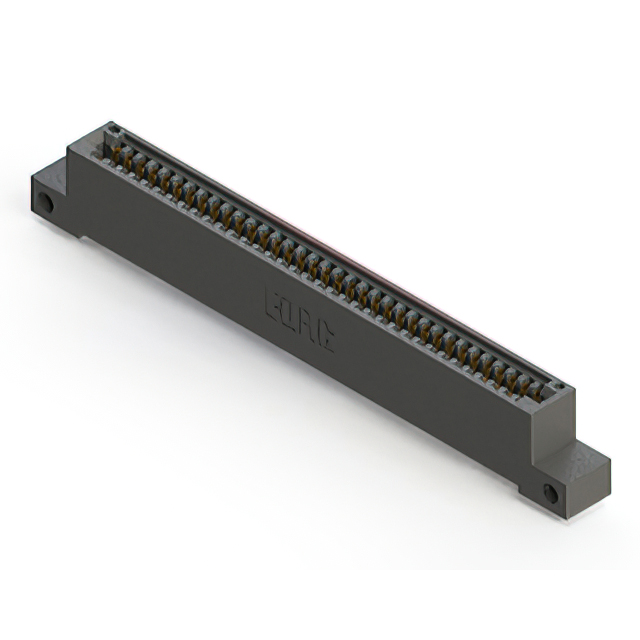

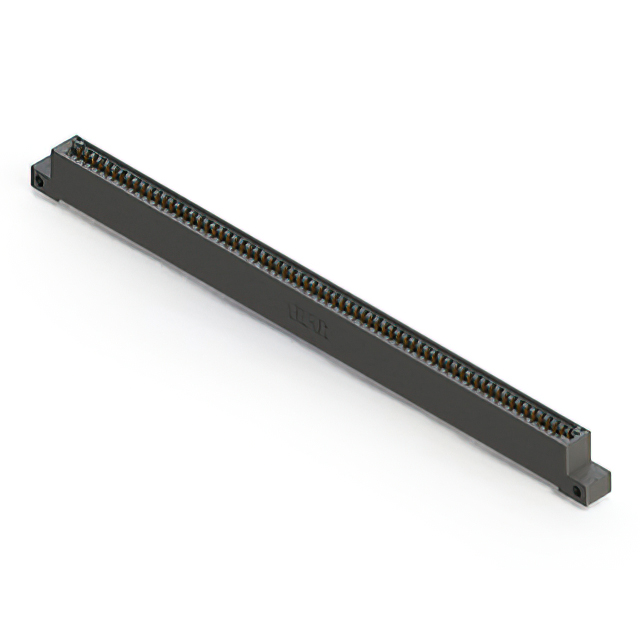

895-070 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 70POS 0.100
...
| Part | Material - Insulation | Termination Rows [custom] | Mounting Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Gender | Pitch | Pitch | Number of Positions | Contact Material | Termination | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Finish | Number of Rows [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Read Out | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Features | Number of Rows | Number of Positions/Bay/Row [custom] | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Through Hole | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Female | 0.1 " | 2.54 mm | 70 | Copper Alloy | Solder | 35 | 0.25 Ám | 10 Áin | Black | Gold | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Board Edge Straddle Mount | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Female | 0.1 " | 2.54 mm | 70 | Copper Alloy | Solder | 35 | 0.25 Ám | 10 Áin | Black | Gold | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Board Edge Straddle Mount | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Female | 0.1 " | 2.54 mm | 70 | Copper Alloy | Solder | 35 | 0.25 Ám | 10 Áin | Black | Gold | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Right Angle Through Hole | M3 Threaded Insert Top Mount Opening | Female | 0.1 " | 2.54 mm | 70 | Copper Alloy | Solder | 35 | 0.25 Ám | 10 Áin | Black | Gold | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Through Hole | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Female | 0.1 " | 2.54 mm | 70 | Copper Alloy | Solder | 0.25 Ám | 10 Áin | Black | Gold | 125 °C | -40 C | Non Specified - Single Edge | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 70 | 1 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Through Hole | 0.156 " | 3.96 mm | Female | 0.1 " | 2.54 mm | 70 | Copper Alloy | Solder Eyelet(s) | 35 | 0.25 Ám | 10 Áin | Black | Gold | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Board Edge Straddle Mount | 0.128 " | 3.25 mm | Female | 0.1 " | 2.54 mm | 70 | Copper Alloy | Solder | 35 | 0.25 Ám | 10 Áin | Black | Gold | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Through Hole | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Female | 0.1 " | 2.54 mm | 70 | Copper Alloy | Wire Wrap | 0.25 Ám | 10 Áin | Black | Gold | 125 °C | -40 C | Non Specified - Single Edge | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 70 | 1 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Through Hole | Female | 0.1 " | 2.54 mm | 70 | Copper Alloy | Solder | 0.25 Ám | 10 Áin | Black | Gold | 125 °C | -40 C | Non Specified - Single Edge | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 70 | 1 | |||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Through Hole | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Female | 0.1 " | 2.54 mm | 70 | Copper Alloy | Wire Wrap | 35 | 0.25 Ám | 10 Áin | Black | Gold | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
