171505 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

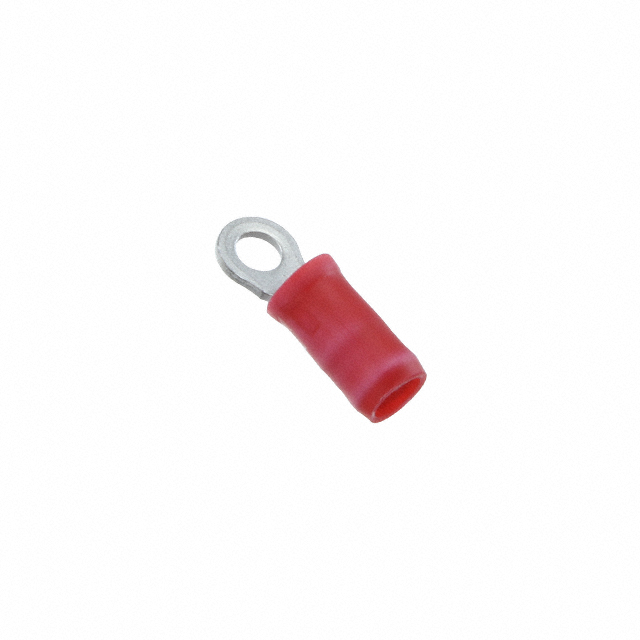

PIDG RING UL.CSA(22-18) ROHS COMPLIANT: YES
| Part | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Stud/Tab Size | Thickness | Thickness | Features | Mounting Type | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Termination | Contact Finish | Terminal Type | Contact Material | Width - Outer Edges [y] | Width - Outer Edges [y] | Color | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.08 " | 3.18 mm | 2.03 mm | 0.125 in | 4 Stud | 0.79 mm | 0.031 in | Serrated Termination | Free Hanging (In-Line) | Insulated | 22 AWG | 17.5 AWG | Crimp | Tin | Circular | Copper | 5.5 mm | 0.217 in | Red | 16.5 mm | 0.65 in |
