UHP-500 Series

Catalog

AC/DC CONVERTER 36V 500W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Type	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Voltage - Output 1 [custom]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Output 1	Approval Agency	Features	Number of Outputs	Voltage - Isolation	Voltage - Output 1	Standard Number
MEAN WELL USA Inc. UHP-500-36	264 VAC 370 VDC	90 VAC 127 VDC	Enclosed	Household Appliances ITE (Commercial)	1.22 in	81 mm	232 mm	31 mm	3.19 "	9.13 "	95 %	36 V	500 W	70 °C	-20 °C	Chassis Mount	13.9 A	CB CCC CE cURus EAC TUV	Adjustable Output PFC Universal Input	1	3750 VDC

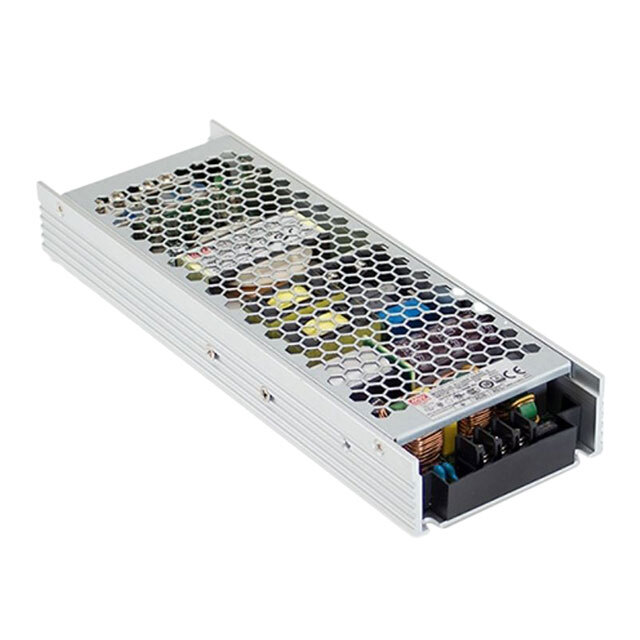

MEAN WELL USA Inc. UHP-500-24	264 VAC 370 VDC	90 VAC 127 VDC	Enclosed	Household Appliances ITE (Commercial)	1.22 in	81 mm	232 mm	31 mm	3.19 "	9.13 "	94.5 %		502 W	70 °C	-20 °C	Chassis Mount	20.9 A	CB CCC CE cURus EAC TUV	Adjustable Output PFC Universal Input	1	3750 VDC	24 V
MEAN WELL USA Inc. UHP-500-12	264 VAC 370 VDC	90 VAC 127 VDC	Enclosed	Household Appliances ITE (Commercial)	1.22 in	81 mm	232 mm	31 mm	3.19 "	9.13 "	94 %		500 W	70 °C	-20 °C	Chassis Mount	41.7 A	CB CCC CE cURus EAC TUV	Adjustable Output PFC Universal Input	1	3750 VDC	12 V
MEAN WELL USA Inc. UHP-500-48	264 VAC 370 VDC	90 VAC 127 VDC	Enclosed	Household Appliances ITE (Commercial)	1.22 in	81 mm	232 mm	31 mm	3.19 "	9.13 "	95 %		502 W	70 °C	-20 °C	Chassis Mount	10.45 A	CB CCC CE cURus EAC TUV	Adjustable Output PFC Universal Input	1	3750 VDC	48 V
MEAN WELL USA Inc. UHP-500R-4.2	264 VAC 370 VDC	90 VAC 127 VDC	Enclosed	Household Appliances ITE (Commercial)	1.22 in	81 mm	232 mm	31 mm	3.19 "	9.13 "	89 %		336 W	70 °C	-20 °C	Chassis Mount		CB CCC CE cURus EAC TUV	Adjustable Output PFC Universal Input	1	3750 VDC	4.2 V
MEAN WELL USA Inc. UHP-500-4.2	264 VAC 370 VDC	90 VAC 127 VDC	Enclosed	Household Appliances ITE (Commercial)	1.22 in	81 mm	232 mm	31 mm	3.19 "	9.13 "	89 %		336 W	70 °C	-20 °C	Chassis Mount		CB CCC CE cURus EAC TUV	Adjustable Output PFC Universal Input	1	3750 VDC	4.2 V
MEAN WELL USA Inc. UHP-500R-12	264 VAC 370 VDC	90 VAC 127 VDC	Enclosed	Household Appliances ITE (Commercial)	1.22 in	81 mm	232 mm	31 mm	3.19 "	9.13 "	94 %		500 W	70 °C	-20 °C	Chassis Mount	41.7 A	CB CCC CE cURus EAC TUV	Adjustable Output PFC Universal Input	1	3750 VDC	12 V
MEAN WELL USA Inc. UHP-500-55	264 VAC 370 VDC	90 VAC 127 VDC	Enclosed	Household Appliances ITE (Commercial)	1.22 in	81 mm	232 mm	31 mm	3.19 "	9.13 "	95 %		490 W	70 °C	-30 °C	Chassis Mount	8.9 A	CB CCC CE cURus EAC TUV	Adjustable Output PFC Universal Input	1	3750 VDC	55 V	62368-1
MEAN WELL USA Inc. UHP-500R-36	264 VAC 370 VDC	90 VAC 127 VDC	Enclosed	Household Appliances ITE (Commercial)	1.22 in	81 mm	232 mm	31 mm	3.19 "	9.13 "	95 %	36 V	500 W	70 °C	-20 °C	Chassis Mount	13.9 A	CB CCC CE cURus EAC TUV	Adjustable Output PFC Universal Input	1	3750 VDC
