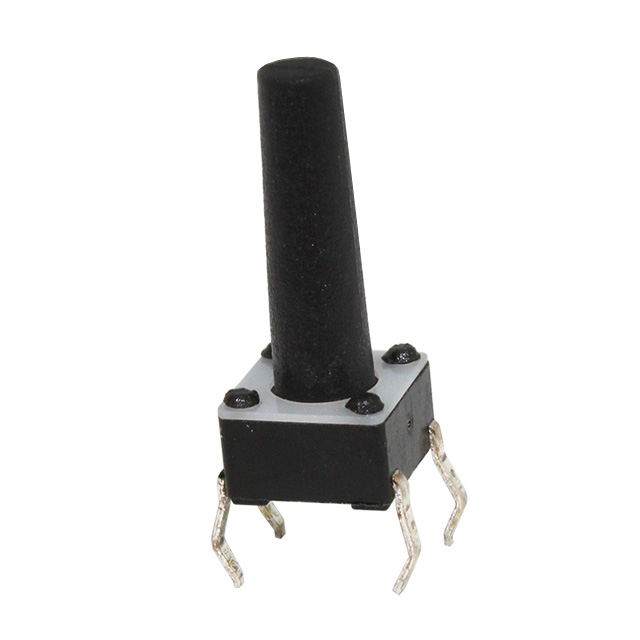

CT110212 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Switch Travel	Actuator Material	Contact Rating @ Voltage	Operating Force	Circuit	Actuator Orientation	Outline [x]	Outline [y]	Illumination	Actuator Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Switch Function	Actuator Height off PCB, Vertical [z]

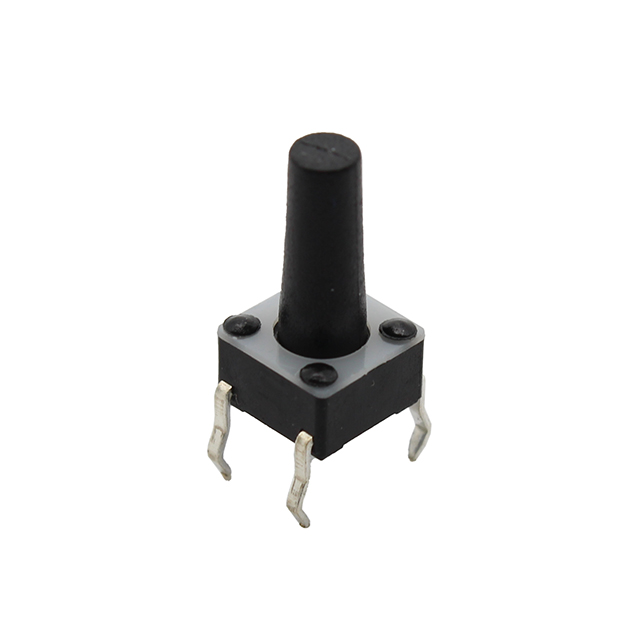

CIT Relay and Switch CT110212.0F160	0.25 mm	Nylon 6/6 Polyamide (PA66)	0.05 A 50 VDC	160 gf	SPST-NO	Top Actuated	6 mm	6 mm	Non-Illuminated	Standard	PC Pin	85 °C	-40 C	Through Hole	Off-Mom	12 mm
CIT Relay and Switch CT110212.0F100	0.25 mm	Nylon 6/6 Polyamide (PA66)	0.05 A 50 VDC	100 gf	SPST-NO	Top Actuated	6 mm	6 mm	Non-Illuminated	Plunger for Cap	PC Pin	85 °C	-40 C	Through Hole	Off-Mom	12 mm
CIT Relay and Switch CT110212.0F260	0.25 mm	Nylon 6/6 Polyamide (PA66)	0.05 A 50 VDC	260 gf	SPST-NO	Top Actuated	6 mm	6 mm	Non-Illuminated	Plunger for Cap	PC Pin	85 °C	-40 C	Through Hole	Off-Mom	12 mm
