BD9F500 Series
Manufacturer: Rohm Semiconductor
Beta
⌘K
EVL BOARD, BD9F500QUZ, BUCK CONV ROHS COMPLIANT: YES
| Part | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Voltage - Output | Utilized IC / Part | Frequency - Switching | Regulator Topology | Contents | Current - Output | Voltage - Input [Min] | Voltage - Input [Max] | Main Purpose | Output Type | Voltage - Input (Min) [Min] | Number of Outputs | Output Configuration | Synchronous Rectifier | Topology | Voltage - Input (Max) [Max] | Voltage - Output (Max) | Voltage - Output (Min/Fixed) | Package / Case | Mounting Type | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Fully Populated | 1 V | BD9F500 | 1 MHz | Buck | Board(s) | 5 A | 4.5 V | 36 V | DC/DC Step Down | |||||||||||||||

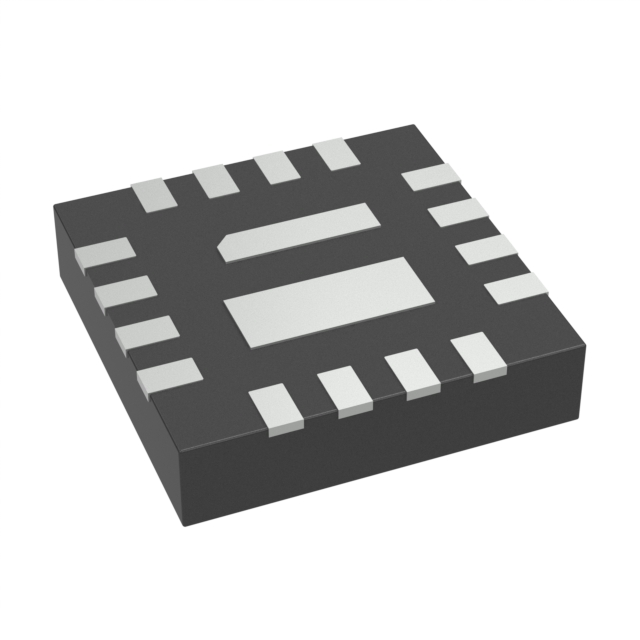

 Rohm Semiconductor | 1 KHz 2.2 MHz 600 kHz | 5 A | Adjustable | 4.5 V | 1 | Positive | Buck | 36 V | 14 V | 0.6 V | 16-XFQFN Exposed Pad | Surface Mount | VMMP16LZ3030 | 85 °C | -40 C | Step-Down |
