CFS-0100 Series

Catalog

DIP SWITCH, SPST-NO, 0.1A, 6VDC, SMD ROHS COMPLIANT: YES

Part	Current Rating (Amps)	Electrical Life	Contact Material	Actuator Type	Termination Style	Circuit	Length [x]	Length [x]	Features	Pitch [x]	Pitch	Pitch [x]	Body Material	Number of Positions	Voltage Rating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Height Above Board	Height Above Board	Actuator Level
Nidec Components Corporation CFS-0100TA	100 mA	1000 Cycles	Copper Alloy	Slide (Standard)	J Lead	SPST	3.96 mm	0.156 "	Tape Seal	0.1 in	Full	2.54 mm	Polyphenylene Sulfide (PPS)	1	6 VDC	Surface Mount	85 °C	-40 °C	Gold	0.154 in	3.9 mm	Flush Recessed

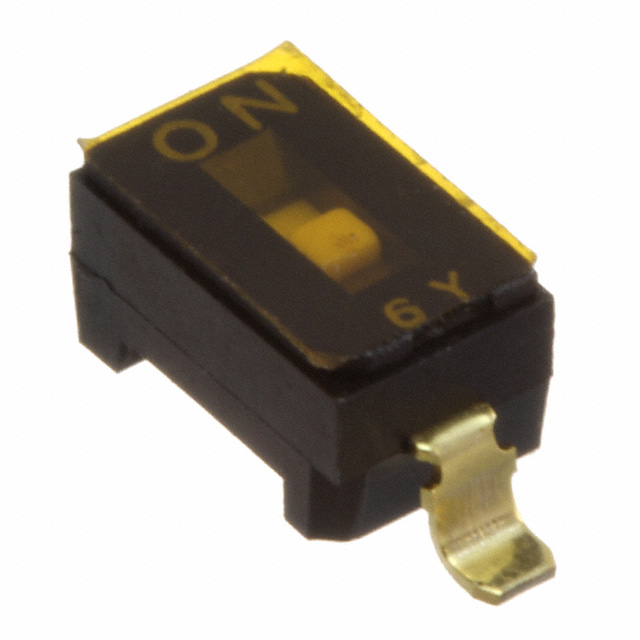

Nidec Components Corporation CFS-0100MB	100 mA	1000 Cycles	Copper Alloy	Slide (Standard)	Gull Wing	SPST	3.96 mm	0.156 "	Tape Seal	0.1 in	Full	2.54 mm	Polyphenylene Sulfide (PPS)	1	6 VDC	Surface Mount	85 °C	-40 °C	Gold	0.146 in	3.7 mm	Flush Recessed
Nidec Components Corporation CFS-0100TB	100 mA	1000 Cycles	Copper Alloy	Slide (Standard)	Gull Wing	SPST	3.96 mm	0.156 "	Tape Seal	0.1 in	Full	2.54 mm	Polyphenylene Sulfide (PPS)	1	6 VDC	Surface Mount	85 °C	-40 °C	Gold	0.146 in	3.7 mm	Flush Recessed

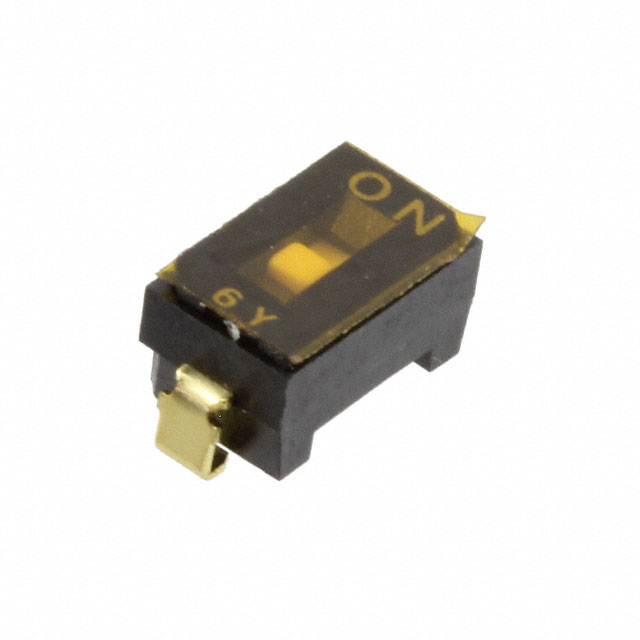

Nidec Components Corporation CFS-0100MA	100 mA	1000 Cycles	Copper Alloy	Slide (Standard)	J Lead	SPST	3.96 mm	0.156 "	Tape Seal	0.1 in	Full	2.54 mm	Polyphenylene Sulfide (PPS)	1	6 VDC	Surface Mount	85 °C	-40 °C	Gold	0.154 in	3.9 mm	Flush Recessed
